Details:

Description

Item	Specification
802.11ac Wave 1 and 2 capabilities	● 1562I: 3 x 3 MIMO with three spatial streams ● 1562E/D 2 x 2 MIMO with two spatial streams ● Multi- and single-user MIMO ● Maximal Ratio Combining (MRC) ● 802.11ac beamforming (transmit beamforming) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic-Shift-Diversity (CSD) support
802.11n (and related) capabilities	● 1562I: 3 x 3 MIMO with three spatial streams ● 1562E/D: 2 x 2 MIMO with two spatial streams ● MRC ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps ● Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 and 5 GHz:
	MCS Index	GI4 = 800 ns					GI = 400 ns
		20-MHz Rates (Mbps)			40-MHz Rates (Mbps)			20-MHz Rates (Mbps)			40-MHz Rates (Mbps)
	0	6.5			13.5			7.2			15
	1	13			27			14.4			30
	2	19.5			40.5			21.7			45
	3	26			54			28.9			60
	4	39			81			43.3			90
	5	52			108			57.8			120
	6	58.5			121.5			65			135
	7	65			135			72.2			150
	8	13			27			14.4			30
	9	26			54			28.9			60
	10	39			81			43.3			90
	11	52			108			57.8			120
	12	78			162			86.7			180
	13	104			216			115.6			240
	14	117			243			130			270
	15	130			270			144.4			300
	16	19.5			40.5			21.7			45
	17	39			81			43.3			90
	18	58.5			121.5			65			135
	19	78			162			86.7			180
	20	117			243			130			270
	21	156			324			173.3			360
	22	175.5			364.5			195			405
	23	195		405			216.7			450
	802.11ac Data Rates (5 GHz)
	Spatial Streams	MCS	GI = 800 ns						GI = 400 ns
			20 MHz			40 MHz	80 MHz		20 MHz	40 MHz		80 MHz
	1	0	6.5			13.5	29.3		7.2	15		32.5
	1	1	13			27	58.5		14.4	30		65
	1	2	19.5			40.5	87.8		21.7	45		97.5
	1	3	26			54	117		28.9	60		130
	1	4	39			81	175.5		43.3	90		195
	1	5	52			108	234		57.8	120		260
	1	6	58.5			121.5	263.3		65	135		292.5
	1	7	65			135	292.5		72.2	150		325
	1	8	78			162	351		86.7	180		390
	1	9	–			180	390		–	200		433.3
	2	0	13			27	58.5		14.4	30		65
	2	1	26			54	117		28.9	60		130
	2	2	39			81	175.5		43.3	90		195
	2	3	52			108	234		57.8	120		260
	2	4	78			162	351		86.7	180		390
	2	5	104			216	468		115.6	240		520
	2	6	117			243	526.5		130	270		585
	2	7	130			270	585		144.4	300		650
	2	8	156			324	702		173.3	360		780
	2	9	–			360	780		–	400		866.7
	3	0	19.5			40.5	87.8		21.7	45		97.5
	3	1	39			81	175.5		43.3	90		195
	3	2	58.5			121.5	263.3		65	135		292.5
	3	3	78			162	351		86.7	180		390
	3	4	117			243	526.5		130	270		585
	3	5	156			324	702		173.3	360		780
	3	6	175.5			364.5	–		195	405		–
	3	7	195			405	877.5		216.7	450		975
	3	8	234			486	1053		260	540		1170
	3	9	260			540	1170		288.9	600		1300
Frequency band and 20- MHz operating channels (regulatory domains)	A: 2.412 to 2.462 GHz, 11 channels 5.280 to 5.320 GHz, 3 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels B: 2.412 to 2.462 GHz, 11 channels 5.180 to 5.240 GHz, 4 channels 5.260 to 5.320 GHz, 4 channels 5.500 to 5.720 GHz, 12 channels 5.745 to 5.825 GHz, 5 channels C: 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels D: 2.412 to 2.462 GHz, 11 channels 5.745 to 5.865 GHz, 7 channels E: 2.412 to 2.472 GHz, 13 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels F: 2.412 to 2.472 GHz, 13 channels 5.745 to 5.805 GHz, 4 channels G: 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels -H: 2.412 to 2.472 GHz, 13 channels 5.745 to 5.825 GHz, 5 channels -I: 2.412 to 2.472 GHz, 13 channels 5.180 to 5.320 GHz, 8 channels (Supported countries - Egypt) -K:* 2.412 to 2.462 GHz, 11 channels 5.280 to 5.320 GHz, 3 channels 5.500 to 5.620 GHz, 7 channels 5.745 to 5.805 GHz, 4 channels -L: 2.412 to 2.472 GHz, 13 channels 5.500 to 5.620 GHz, 7 channels 5.745 to 5.865 GHz, 7 channels -M: 2.412 to 2.472 GHz, 13 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.805 GHz, 4 channels -N: 2.412 to 2.462 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels -Q: 2.412 to 2.472 GHz, 13 channels 5.500 to 5.700 GHz, 11 channels -R: 2.412 to 2.472 GHz, 13 channels 5.260 to 5.320 GHz, 4 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels -S: 2.412 to 2.472 GHz, 13 channels 5.500 to 5.700 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels -T: 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels -Z: 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels
Note: Customers are responsible f or verifying approval f or use in their individual countries. To verify approval that corresponds t o a particular country, please visit https://www.cisco.com/go/aironet/compliance.
Maximum number of nonoverlapping channels	2.4 GHz ● 802.11b/g: ● 20 MHz: 3 ● 802.11n: ● 20 MHz: 3 ● 40 MHz: 1 (hardware capable)						5 GHz ● 802.11a: ● 20 MHz: 27 ● 802.11n: ● 20 MHz: 27 ● 40 MHz: 13 ● 802.11ac: ● 20 MHz: 27 ● 40 MHz: 13 ● 80 MHz: 6
Note: This number varies by regulatory domain. Refer to the product documentation f or specific details f or each regulatory domain.
Receive Sensitivity
			2.4 GHz Radio						5 GHz Radio
	Spatial Streams		1562I			1562D/E			1562I	1562D/E
802.11/11b
1 Mbps	1	-100				-98	NA			NA
11 Mbps	1	-88				-87	NA			NA
802.11a/g
6 Mbps	1	-92				-90	-94			-93
24 Mbps	1	-86				-83	-89			-88
54 Mbps	1	-76				-74	-80			-79
802.11n HT20
MCS0	1	-90				-89	-91			-90
MCS4	1	-84				-82	-88			-86
MCS7	1	-77				-75	-80			-78
MCS8	2	-89				-88	-90			-89
MCS12	2	-82				-80	-85			-83
MCS15	2	-75				-72	-78			-76
MCS16	3	-89					-90
MCS20	3	-81					-84
MCS23	3	-73					-76
802.11n HT40
MCS0	1	-88				-86	-90			-90
MCS4	1	-82				-80	-85			-83
MCS7	1	-75				-74	-78			-76
MCS8	2	-87				-86	-90			-90
MCS12	2	-80				-78	-82			-81
MCS15	2	-72				-70	-75			-73
MCS16	3	-87					-90
MCS20	3	-78					-81
MCS23	3	-71					-74
802.11ac VHT20
MCS0	1						-95			-94
MCS4	1						-88			-86
MCS7	1						-81			-79
MCS8	1						-77			-75
MCS0	2						-94			-93
MCS4	2						-86			-84
MCS7	2						-78			-76
MCS8	2						-74			-72
MCS0	3						-93
MCS4	3						-85
MCS7	3						-78
MCS8	3						-72
MCS9	3						-69
802.11ac VHT40
MCS0	1						-91			-90
MCS4	1						-85			-84
MCS7	1						-79			-77
MCS8	1						-75			-73
MCS9	1						-73			-71
MCS0	2						-91			-90
MCS4	2						-83			-82
MCS7	2						-76			-74
MCS8	2						-73			-70
MCS9	2						-71			-68
MCS0	3						-91
MCS4	3						-82
MCS7	3						-74
MCS8	3						-69
MCS9	3						-68
802.11ac VHT80
MCS0	1						-88			-88
MCS4	1						-83			-81
MCS7	1						-75			-73
MCS8	1						-71			-69
MCS9	1						-69			-67
MCS0	2						-88			-88
MCS4	2						-80			-78
MCS7	2						-73			-71
MCS8	2						-69			-67
MCS9	2						-67			-65
MCS0	3						-88
MCS4	3						-78
MCS7	3						-71
MCS8	3						-67
MCS9	3						-65
Maximum conducted transmit power	1562I ● 2.4 GHz: 29 dBm with 3 antennas ● 5 GHz: 29 dBm with 3 antennas					1562D ● 2.4 GHz: 27 dBm with 2 antennas ● 5 GHz: 27 dBm with 2 antennas				1562E ● 2.4 GHz: 27 dBm with 2 antennas ● 5 GHz: 27 dBm with 2 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation f or specific details.
Interfaces	● WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in ● SFP port (fiber or electrical) ● Management console port (RJ-45) ● Multicolor LED ● DC power input ● Reset button
Uplink options	Ethernet, SFP, and wireless mesh
Dimensions (L x W x D)	1562I: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm) 1562D: 9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9 cm) 1562E:: 9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)
Weight	1562I: 5.6 lb (2.5 kg) 1562D: 5.7 lb (2.6 kg) 1562E: 5.6 lb (2.5 kg)
Environmental	Operating temperature: ● –40 to 65°C (–40 to 149°F) ambient air with no solar loading ● –40 to 55°C (–40 to 131°F) ambient air with solar loading Storage temperature: –40 to 85°C (–40 to 185°F) Humidity: 5 - 95%, non-condensing Wind resistance: ● Up to 100-mph sustained winds ● Up to 165-mph wind gusts
Environmental ratings	● IEC 60529 IP67 ● NEMA Type 4X ● Icing protection NEMA 250-2008 ● Corrosion NEMA 250-2008 (600 hours) ● Solar radiation EN 60068-2-5 (1200 W/ m2) ● Vibration MIL-STD-810
Antennas	● Integrated dual-band semi-omnidirectional antenna radome, (1562I) 7 dBi (2.4 GHz), 4 dBi (5 GHz) ● Integrated dual-band directional antenna radome, (1562D) 9 dBi (2.4 GHz), 10 dBi (5 GHz) ● Dual Band ● AIR-ANT2568VG-N 6 dBi (2.4 GHz), 8 dBi (5 GHz) Omni ● AIR-ANT2547VG-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni ● AIR-ANT2547V-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni ● AIR-ANT2588P3M-N= 8 dBi (2.4 GHz), 8 dBi (5 GHz) Directional ● AIR-ANT2513P4M-N= 13 dBi (2.4 GHz), 13 dBi (5 GHz) Directional ● Single Band 2.4 GHz ● AIR-ANT2450V-N= 5 dBi (2.4 GHz), Omni ● AIR-ANT2450VG-N= 5 dBi (2.4 GHz), Omni, vertical polarized ● AIR-ANT2450HG-N= 5 dBi (2.4 GHz), Omni, horizontal polarized ● AIR-ANT2480V-N= 8 dBi (2.4 GHz), Omni ● AIR-ANT2413P2M-N= 13 dBi (2.4 GHz), Directional, dual polarized 5 GHz ● AIR-ANT5150VG-N= 5 dBi (5GHz), Omni, vertical polarized ● AIR-ANT5150HG-N= 5 dBi (5GHz), Omni, horizontal polarized ● AIR-ANT5180V-N= 8 dBi (5GHz), Omni ● AIR-ANT5114P2M-N= 14 dBi (5GHz), Directional, dual polarized For antenna details, please refer to the antenna webpage: https://www.cisco.com/go/antennas
Powering options	● AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter) ● 44–57 VDC input ● Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at ● Cisco power injectors: AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug) AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable) AIR-PWRINJ6= (indoor, 802.3at) Note: If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.
Power consumption	1562I 32 W (3x3:3, full power) 1562D/E 25 W
Compliance	Safety ● UL60950, 2 ^nd Edition ● CAN/CSA-C22.2 No. 60950, 2 ^nd Edition ● IEC 60950, 2 ^nd Edition ● EN 60950, 2 ^nd Edition Immunity ● <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform ● ANSI/IEEE C62.41 ● EN61000-4-5 Lev el 4 AC Surge Immunity ● EN61000-4-4 Lev el 4 Electrical Fast Transient Burst Immunity ● EN61000-4-3 Lev el 4 EMC Field Immunity ● EN61000-4-2 Lev el 2 ESD Immunity ● EN60950 Overvoltage Category IV Radio Approvals ● FCC Part 15.247, 15.407 ● FCC Bulletin OET-65C ● RSS-247 ● RSS-102 ● AS/NZS 4268.2003 ● ARIB-STD 66 (Japan) ● ARIB-STD T71 (Japan) ● EN 300 328 ● EN 301 893 EMI and Susceptibility ● FCC part 15.107, 15.109 ● ICES-003 ● EN 301 489-1, -17 Security ● Wireless bridging/mesh (future availability) ● X.509 digital certificates ● MAC address authentication ● Adv anced Encryption Standard (AES) Wireless Access ● 802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA ● 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module - (EAP-SIM), and Cisco LEAP ● VPN pass-through ● IP Security (IPsec) ● Layer 2 Tunneling Protocol (L2TP) ● MAC address filtering
Warranty	1-year limited hardware warranty

CONTACT US TO LEARN MORE

ABOUT Cisco Aironet 1560

Fill out the form and our team will get back to you.

1-855-432-8918
[email protected]
2130 W Sam Houston Pkwy N
Houston, TX 77043

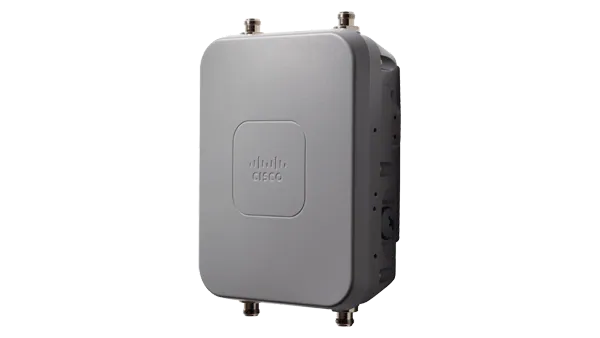

Cisco Aironet 1560
