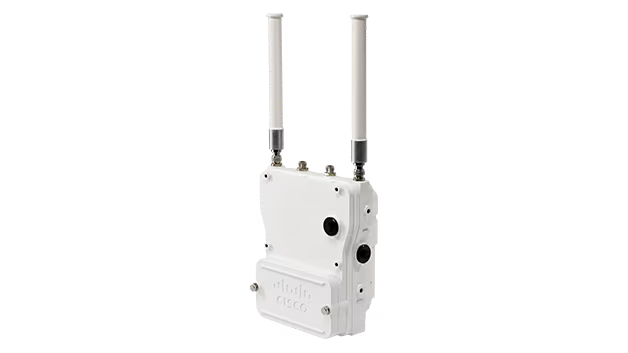

Cisco Catalyst IW6300

Part numbers

IW-6300H-AC-X-K9, IW-6300H-DC-X–K9, IW-6300H-DCW-X–K9

802.11ac Wave 1 and 2 capabilities

802.11n Version 2.0 (and related) capabilities

Data rates supported

2.4-GHz radio:

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n data rates:

MCS Index

GI = 800 ns

20-MHz rate (Mbps)

GI = 400 ns

20-MHz rate (Mbps)

0

6.5

7.2

1

13

14.4

2

19.5

21.7

3

26

28.9

4

39

43.3

5

52

57.8

6

58.8

65

7

65

72.2

8

13

14.4

9

26

28.9

10

39

43.3

11

52

57.8

12

78

86.7

13

104

115.6

14

117

130

15

130

144.4

5-GHz radio:

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n data rates:

MCS Index

GI = 800 ns

20-MHz rate (Mbps)

GI = 400 ns

20-MHz rate (Mbps)

GI = 800 ns

40-MHz rate (Mbps)

GI = 400 ns

40-MHz rate (Mbps)

0

6.5

7.2

13.5

15

1

13

14.4

27

30

2

19.5

21.7

40.5

45

3

26

28.9

54

60

4

39

43.3

81

90

5

52

57.8

108

120

6

58.8

65

121.5

135

7

65

72.2

135

150

8

13

14.4

27

30

9

26

28.9

54

60

10

39

43.3

81

90

11

52

57.8

108

120

12

78

86.7

162

180

13

104

115.6

216

240

14

117

130

243

270

15

130

144.4

270

300

802.11ac data rates:

MCS Index

Spatial streams

20-MHz rate (Mbps)

40-MHz rate (Mbps)

80-MHz rate (Mbps)

GI =

800 ns

GI =

400 ns

GI =

800 ns

GI =

400 ns

GI =

800 ns

GI =

400 ns

0

1

6.5

7.2

13.5

15

29.3

32.5

1

1

13

14.4

27

30

58.5

65

2

1

19.5

21.7

40.5

45

87.8

97.5

3

1

26

28.9

54

60

117

130

4

1

39

43.3

81

90

175.5

195

5

1

52

57.8

108

120

234

260

6

1

58.5

65

121.5

135

263.3

292.5

7

1

65

72.2

135

150

292.5

325

8

1

78

86.7

162

180

351

390

9

1

-

-

180

200

390

433.3

0

2

13

14.4

27

30

58.5

65

1

2

26

28.9

54

60

117

130

2

2

39

43.3

81

90

175.5

195

3

2

52

57.8

108

120

234

260

4

2

78

86.7

162

180

351

390

5

2

104

115.6

216

240

468

520

6

2

117

130

243

270

526.5

585

7

2

130

144.4

270

300

585

650

8

2

156

173.3

324

360

702

780

9

2

-

-

360

400

780

866.7

Frequency band and 20- MHz operating channels

A (A regulatory domain):

B (B regulatory domain):

C (C regulatory domain):

D (D regulatory domain):

E (E regulatory domain):

F (F regulatory domain):

G (G regulatory domain):

H (H regulatory domain):

I (I regulatory domain):

K (K regulatory domain):

L (L regulatory domain):

M (M regulatory domain):

N (N regulatory domain):

Q (Q regulatory domain):

R (R regulatory domain):

S (S regulatory domain):

T (T regulatory domain):

Z (Z regulatory domain):

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. Customers are responsible for verifying approval for use in their individual countries. To verify approval and to determine availability of the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/c/dam/assets/prod/wireless/wireless-compliance-tool/index.html.

Maximum number of non-overlapping channels

2.4 GHz

◦      20 MHz: 3

◦      20 MHz: 3

◦      40 MHz: 1 (hardware-capable)

5 GHz

◦      20 MHz: 27

◦      20 MHz: 27

◦      40 MHz: 13

◦      20 MHz: 27

◦      40 MHz: 13

◦      80 MHz: 6

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
