Part numbers

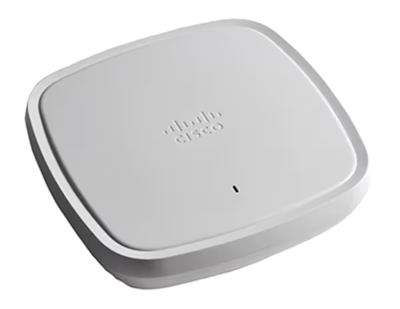

Cisco Catalyst 9115AXI Access Point: Indoor environments, with internal antennas

Cisco Catalyst 9115AXE Access Point: Indoor, challenging environments, with external antennas

Cisco Catalyst 9115AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller

Cisco Catalyst 9115AXE Access Point: Indoor, challenging environments, with external antennas, with embedded wireless controller

Regulatory domains: (x = regulatory domain)

Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit

https://www.cisco.com/go/aironet/compliance.

Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.

Cisco Wireless LAN Services

Software

Supported wireless LAN controllers

802.11n version 2.0 (and related) capabilities

802.11ac

802.11ax

Integrated antenna

External antenna (sold separately)

Interfaces

Indicators

Dimensions (W x L x H)

Weight

Cisco Catalyst 9115AXI

Cisco Catalyst 9115AXE

Input power requirements

Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.

802.3at full feature – Catalyst 9115I

Power source

Power type

2.4-GHz radio

5-GHz radio

Link speed

USB

Max PoE Power Consumption

802.3at

PoE

4x4

4x4

2.5G

Y

20.4W

802.3at full feature – Catalyst 9115E

Power source

Power type

2.4-GHz radio

5-GHz radio

Link speed

USB

Max PoE Power Consumption

802.3at

PoE

4x4

4x4

2.5G

Y

21.4W

802.3af reduced feature

Power source

Power type

2.4-GHz radio

5-GHz radio

Link speed

USB

Max PoE Power Consumption

802.3af

PoE

2x2

2x2

1G

N

13W

Note: Actual power consumption may vary depending on AP usage. It is recommended that you ensure that LLDP/CDP is enabled to allow proper power negotiation.

Environmental

Cisco Catalyst 9115AXI

Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.

Cisco Catalyst 9115AXE

System memory

Warranty

Limited lifetime hardware warranty

Available transmit power settings

2.4 GHz

5 GHz

Regulatory domains

Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/go/aironet/compliance

For information about Regulatory Domain support, refer to the Cisco Regulatory Domain White Paper

Compliance standards

◦    IEC 60950-1

◦    EN 60950-1

◦    UL 60950-1

◦    CAN/CSA-C22.2 No. 60950-1

◦    AS/NZS 60950-1

◦    UL 2043

◦    Class III equipment

◦    CISPR 32 (rev. 2015)

◦    EN 55032 (rev. 2012/AC:2013)

◦    EN 55032 (rev. 2015)

◦    EN61000-3-2 (rev. 2014)

◦    EN61000-3-3 (rev. 2013)

◦    KN61000-3-2

◦    KN61000-3-3

◦    AS/NZS CISPR 32 Class B (rev. 2015)

◦    47 CFR FCC Part 15B

◦    ICES-003 (rev. 2016 Issue 6, Class B)

◦    VCCI (V3)

◦    CNS (rev. 13438)

◦    KN-32

◦    TCVN 7189 (rev. 2009)

◦    CISPR 24 (rev. 2010)

◦    EN 55024/EN 55035 (rev. 2010)

◦    EN 301 489-1 (v2.1.1 2017-02)

◦    EN 301 489-17 (v3.1.1 2017-02)

◦    QCVN (18:2014)

◦    KN 489-1

◦    KN 489-17

◦    EN 60601 (1-1:2015)

◦    EN 300 328 (v2.1.1)

◦    EN 301 893 (v2.1.1)

◦    AS/NZS 4268 (rev. 2017)

◦    47 CFR FCC Part 15C, 15.247, 15.407

◦    RSP-100

◦    RSS-GEN

◦    RSS-247

◦    China regulations SRRC

◦    LP0002 (rev 2018.1.10)

◦    Japan Std. 33a, Std. 66, and Std. 71

◦    EN 50385 (rev. Aug 2002)

◦    ARPANSA

◦    AS/NZS 2772 (rev. 2016)

◦    EN 62209-1 (rev. 2016)

◦    EN 62209-2 (rev. 2010)

◦    47 CFR Part 1.1310 and 2.1091

◦    RSS-102

◦    IEEE standards:

◦    IEEE 802.3

◦    IEEE 802.3ab

◦    IEEE 802.3af/at

◦    IEEE 802.11 a/b/g/n/ac/ax

◦    IEEE 802.11h, 802.11d

◦    802.11i, Wi-Fi Protected Access 3 (WPA3), WPA2, WPA

◦    802.1X

◦    Advanced Encryption Standard (AES)

◦    Extensible Authentication Protocol (EAP) types:

◦    EAP-Transport Layer Security (TLS)

◦    EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

◦    Protected EAP (PEAP) v0 or EAP-MSCHAPv2

◦    EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)

◦    PEAP v1 or EAP-Generic Token Card (GTC)

◦    EAP-Subscriber Identity Module (SIM)

Datarate/Transmit Power/ Receive sensitivity

For more detailed information about Datarate/TX Power/Receive sensitivity, Please refer Cisco RF Details

Transmit power and receive sensitivity

5-GHz radio

2.4-GHz radio

Spatial streams

Total transmit power (dBm)

Receive sensitivity (dBm)

Total transmit power (dBm)

Receive sensitivity (dBm)

802.11/11b

1 Mbps

1

-

-

23

-98

11 Mbps

1

-

-

23

-90

802.11a/g

6 Mbps

1

23

-96

23

-95

24 Mbps

1

23

-87

23

-85

54 Mbps

1

23

-76

23

-76

802.11n HT20

MCS0

1

23

-95

23

-94

MCS31

4

23

-70

23

-70

802.11n HT40

MCS0

1

23

-93

-

-

MCS31

4

23

-68

-

-

802.11ac VHT20

MCS0

1

23

-95

-

-

MCS9

1

22

NA

-

-

MCS0

2

23

-92

-

-

MCS9

2

22

NA

-

-

MCS0

3

23

-91

-

-

MCS9

3

22

-67

-

-

MCS0

4

23

-90

-

-

MCS9

4

22

-66

-

-

802.11ac VHT40

MCS0

1

23

-89

-

-

MCS9

1

22

-65

-

-

MCS0

2

23

-86

-

-

MCS9

2

22

-62

-

-

MCS0

3

23

-85

-

-

MCS9

3

22

-61

-

-

MCS0

4

23

-84

-

-

MCS9

4

22

-59

-

-

802.11ac VHT80

MCS0

1

23

-84

-

-

MCS9

1

22

-60

-

-

MCS0

2

23

-81

-

-

MCS9

2

22

-57

-

-

MCS0

3

23

-80

-

-

MCS9

3

22

-55

-

-

MCS0

4

23

-77

-

-

MCS9

4

22

-54

-

-

802.11ac VHT160

MCS0

1

23

-84

-

-

MCS9

1

21

-59

-

-

MCS0

2

23

-85

-

-

MCS9

2

21

-57

-

-

MCS0

3

23

-85

-

-

MCS9

3

21

-55

-

-

MCS0

4

23

-85

-

-

MCS9

4

21

-53

-

-

802.11ax VHT20

MCS0

1

23

-94

23

-93

MCS11

1

21

-64

20

-62

MCS0

2

23

-91

23

-90

MCS11

2

21

-61

20

-59

MCS0

3

23

-90

23

-88

MCS11

3

21

-60

20

-58

MCS0

4

23

-87

23

-86

MCS11

4

21

-59

20

-57

802.11ax VHT40

MCS0

1

23

-92

23

-91

MCS11

1

21

-60

20

-60

MCS0

2

23

-89

23

-87

MCS11

2

21

-57

20

-57

MCS0

3

23

-88

23

-85

MCS11

3

21

-56

20

-55

MCS0

4

23

-86

23

-83

MCS11

4

21

-54

20

-54

802.11ax VHT80

MCS0

1

23

-87

-

-

MCS11

1

21

-58

-

-

MCS0

2

23

-84

-

-

MCS11

2

21

-55

-

-

MCS0

3

23

-83

-

-

MCS11

3

21

-54

-

-

MCS0

4

23

-81

-

-

MCS11

4

21

-52

-

-

802.11ax VHT160

MCS0

1

23

-84

-

-

MCS11

1

20

-55

-

-

MCS0

2

23

-81

-

-

MCS11

2

20

-52

-

-

MCS0

3

23

-80

-

-

MCS11

3

20

-51

-

-

MCS0

4

23

-78

-

-

MCS4

4

23

-67

-

-

MCS7

4

23

-60

-

-

MCS8

4

21

-57

-

-

MCS9

4

21

-55

-

-

MCS10

4

20

-51

-

-

MCS11

4

20

-49

-

-
