Designed for security, built for scale. Create a superior network edge with accelerated aggregation services, multicloud networking, high-speed routing, and edge intelligence.

As a trusted Cisco reseller, ServerMonkey offers the Cisco NCS 540 Fronthaul at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Chassis PID	N540-FH-CSR-SYS (Remote Indoor CSR)	N540-FH-AGG-SYS (Aggregation Router)
CPU	8-core 1.7Ghz x86 CPU
Memory Storage	8GB DRAM 32GB storage
Interfaces	8xCPRI Option 3-8 + 4x1/10G/CPRI 3-8 + 8x1/10G + 4x1/10/25G + 2x10/25G (802.1Qbu) + 2x100G *Universal Port = Port can be used for CPRI, eCPRI, Ethernet (1/10GE)	24x1G/10G/25G (802.1Qbu, CPRI option 3-8) + 4x100G *Universal Port = Port can be used for CPRI, eCPRI, Ethernet (1/10/25GE)
Throughput	Up to 300 Gbps	Up to 900 Gbps
Power Supplies Fans Airflow	2 hot-swappable AC/DC power supplies provide 1+1 redundancy 6 fans provide 5+1 redundant system cooling Front-to-back airflow	2 hot-swappable AC/DC power supplies provide 1+1 redundancy 6 modular fans provide 5+1 redundant system cooling Front-to-back airflow
Temperature Range	I-Temp: -40°C to+65°C at 1,000ft +60°C at 6,000ft +50°C at 13,000ft C-Temp: 0°C to +55°C at 1,000ft +50°C at 6,000ft +45°C at 13,000ft	I-Temp: -40°C to+65°C at 1,000ft +60°C at 6,000ft +50°C at 13,000ft C-Temp: 0°C to +55°C at 1,000ft +50°C at 6,000ft +45°C at 13,000ft
Surge Rating	As per IEC 61000-4-5 AC: 1kV DM, 2kV CM DC: 1kV DM, 1kV CM	As per IEC 61000-4-5 AC: 1kV DM, 2kV CM DC: 1kV DM, 1kV CM
Timing	SyncE, PTP Internal GNSS receiver SW* Interfaces: 1pps, 10MHz, ToD, antenna for GNSS Class C	SyncE, PTP Internal GNSS receiver SW* Interfaces: 1pps, 10MHz, ToD, antenna for GNSS Class C
Physical Specification	1RU Depth: 38.1cm 1.72 in. x 17.5 in. x 15 in (H x W x L) Weight: 7.55 kg	1RU Depth: 58cm 1.72 in. x 17.5 in. x 22.82 in (H x W x L) Weight: 11.3 kg

CONTACT US TO LEARN MORE

ABOUT Cisco NCS 540 Fronthaul

Fill out the form and our team will get back to you.

1-855-432-8918
[email protected]
2130 W Sam Houston Pkwy N
Houston, TX 77043

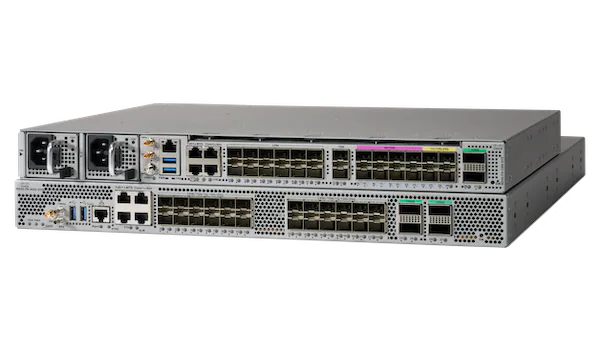

Cisco NCS 540 Fronthaul
