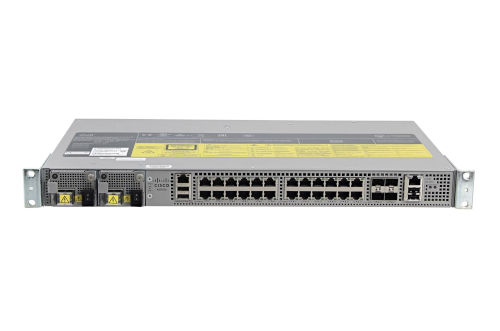

Designed for security, built for scale. Create a superior network edge with accelerated aggregation services, multicloud networking, high-speed routing, and edge intelligence.

As a trusted Cisco reseller, ServerMonkey offers the Cisco ASR 920 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Specification	ASR-920-12CZ-A/ASR-920-12CZ-D	ASR-920-4SZ-A/ASR-920-4SZ-D
Dimension (Width x Depth x Height)	17.5 x 9.25 x 1.75 inches	15.5 x 9.25 x 1.75 inches
Weight	ASR-920-12CZ-A: 3.80 kg ASR-920-12CZ-D: 3.54 kg	ASR-920-4SZ-A: 3.50 kg ASR-920-4SZ-D: 3.22 kg
Rack Unit	One RU	One RU
Airflow	Front to back	Front to back
Cable access	Front cable access	Front cable access
System throughput	32 Gbps	42 Gbps
Power Supply	Modularity: None, Redundant: Yes, AC: Yes	Modularity: None, Redundant: Yes, AC: Yes
Power Specification (AC)	115 W	105 W
Power Specification (DC)	110 W	105 W
Operating Temperature	–40º C to 70º C Note: When using Smart SFPs, the systems should not operate beyond 40º C. Note: The temperature range will vary for supported SFP/SFP+ installed on the router. See the corresponding SFP/SFP+ documentation for more details.	–40º C to 70º C Note: When using Smart SFPs, the systems should not operate beyond 40º C. Note: The temperature range will vary for supported SFP/SFP+ installed on the router. See the corresponding SFP/SFP+ documentation for more details.
Alarms	4 alarm dry contact inputs (normally open), LED indicators for critical, major and minor alarms	4 alarm dry contact inputs (normally open), LED indicators for critical, major and minor alarms
TDM Support	None	None
Mounting option	Front or rear rail 19 inches or 23 inches ETSI 300 mm cabinet Wall Mount (with only side mount option). Note: For more information, see Wall Mounting the Cisco ASR 920 Series Router, page 3-9.	Front or rear rail 19 inches or 23 inches ETSI 300 mm cabinet Wall Mount (with only side mount option). Note: For more information, see Wall Mounting the Cisco ASR 920 Series Router, page 3-9.
Port Configuration	12x1G and 2x10G/1G ports	2x1G and 4x10G/1G ports
Port Numbering	4x1G SFP – Port [0:3] 8x1G Combo – Port [4:11] 2x10G – Port [12-13]	2x1G Copper – Port [0:1] 4x10G – Port [2-5]
Combo Ports	Ports 4 to 11 are combo ports	No combo ports
Copper Port LEDs	Link/Activity/Duplex LED indication	Link/Activity/Duplex LED indication
Temperature Sensors	Four temperature sensors	Three temperature sensors
BITS/ToD	External ports for BITS/TOD	External ports for BITS/TOD
