Designed for security, built for scale. Create a superior network edge with accelerated aggregation services, multicloud networking, high-speed routing, and edge intelligence.

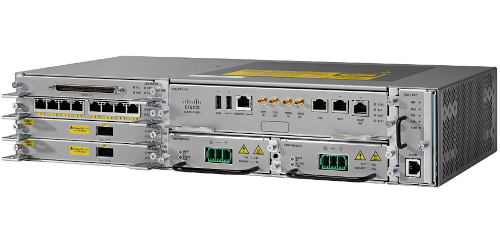

As a trusted Cisco reseller, ServerMonkey offers the Cisco ASR 902 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Description	Cisco ASR 902 Router	Cisco ASR 903 Router	Cisco ASR 907 Router
Physical specifications	Height: 3.56 in. (90.424 mm) - 2RU Width: 17.44 in. (443 mm) Depth: 9.22 in. (234.2 mm) Weight: 24.04 lb (10.9 kg) with one RSP, two DC power supplies, and loaded with a typical combination of interface module cards 9.48 lb (4.3 kg) for an empty chassis 30 lb shipment weight	Height: 5.22 in. (132.6 mm) - 3RU Width: 17.44 in. (443 mm) Depth: 9.22 in. (234.2 mm) Weight: 34.17 lb (15.5 kg) with two RSPs, two DC power supplies, and loaded with a typical combination of interface module cards 11.2 lb (5.1 kg) for an empty chassis 38 lb shipment weight	Height: 12.22 in. (310.38 mm) - 7RU Width: 17.44 in. (443 mm) Depth: 9.22 in. (234.2 mm) Weight: 69.32 lb (31.4 kg) with two RSPs, two DC power supplies, and loaded with a typical combination of interface module cards 34.9 lb (15.9 kg) for an empty chassis 58 lb shipment weight
Rack mounts	ETSI rack mount kit 19 in. rack mount kit 23 in. rack mount kit	ETSI rack mount kit 19 in. rack mount kit 23 in. rack mount kit	ETSI rack mount kit 19 in. rack mount kit 23 in. rack mount kit
Power supplies	2 power supply slots	2 power supply slots	3 power supply slots
Interface modules	4 interface module slots	6 interface module slots	16 interface module slots
Route switch processors	1 RSP slot	2 RSP slots	2 RSP slots
Fan tray	1 fan tray with fan redundancy 2 dry contact input alarms on the fan tray	1 fan tray with fan redundancy 4 dry contact input alarms on the fan tray
Air flow	Side-to-side airflow; inlet on the right side, outlet on the left side when looking from the front
Power supplies	Up to 2 power supplies (AC or DC) Modules operate in load-share mode System can operate on a single power supply and supports mixing of one AC and one DC power supplies in a single chassis.	Up to 2 power supplies (AC or DC) Modules operate in load-share mode System can operate on a single power supply and supports mixing of one AC and one DC power supplies in a single chassis.	Up to 3 power supplies (AC or DC) Modules operate in load-share mode System can operate on a single power supply and supports mixing of AC and DC power supplies in a single chassis.
Chassis MTBF at 40ºC operating temperature	900,000 hours	900,000 hours	1,585,000 hours
Fan Tray MTBF at 40ºC operating temperature	600,000 hours	600,000 hours	1,329,000 hours
