Designed for security, built for scale. Create a superior network edge with accelerated aggregation services, multicloud networking, high-speed routing, and edge intelligence.

As a trusted Cisco reseller, ServerMonkey offers the Cisco ASR 9912 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

CONTACT US TO LEARN MORE

ABOUT Cisco ASR 9912

Fill out the form and our team will get back to you.

1-855-432-8918
[email protected]
2130 W Sam Houston Pkwy N
Houston, TX 77043

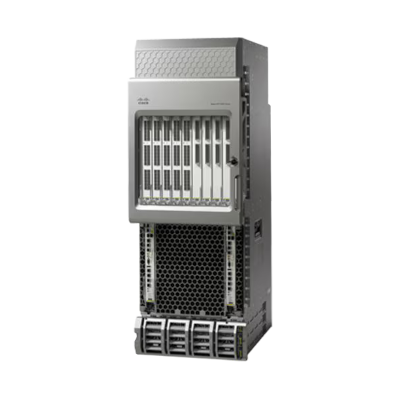

Cisco ASR 9912

CONTACT US TO LEARN MORE

ABOUT Cisco ASR 9912

Get to Know Us

Resources

What We Do

Customer Service

Follow Us

Specification	Model	Cisco ASR 9912	Cisco ASR 9922
Categories	Physical specifications	Height: 52.5 in. (1333.5 mm) (30 RU) Width: 17.60 in. (447.04 mm) Depth: With door: 30.03 in. (762.76 mm) Without doors: 29.25 in. (742.95 mm) Weight: 231.25 lb (105.11 kg) (3 PEMs and chassis) 389.55 lb (177.07 kg) (3 PEMs, 2 Fan Trays, 2 RP2, and 5 Fabric Card 2)	Height: 77 in. (1955.4 mm) (44 RU) Width: 17.60 in. (447.04 mm) Depth: With doors: 30.68 in. (779.27 mm) Without doors: 30.19 in. (766.82 mm) Weight: 413 lb (187.73 kg) (4 PEM and chassis) 639.5 lb (290.7 kg) (2 RP2, 7 Fabric Cards 2, 4 Fan Trays, and 4 PEMs)
Categories	Slot orientation	Vertical	Vertical
Cisco ASR 9000 Series RSP	RSPs segregated into route processor and fabric cards	RSPs segregated into route processor and fabric cards
Cisco ASR 9000 Series RSP	Route processor	Dual redundant route processors in 2 slots	Dual redundant route processors in 2 slots
Fabric cards	6 + 1 redundant fabric cards	6 + 1 redundant fabric cards
Cisco ASR 9000 Series line cards	10 line-card slots	20 line-card slots
“Commons” components	2 route processors 7 fabric cards 2 fan trays 3 PEMs (either DC or AC) 1 center fan filter, 2 side fan filters	2 route processors 7 fabric cards 4 fan trays 4 PEMs (either DC or AC) 1 center fan filter, 2 side fan filters
Reliability and availability	Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy Route-processor redundancy Software redundancy	Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy Route-processor redundancy Software redundancy
Rack mounting	19-in. 21- and 23-in. adapters available	19-in. 21- and 23-in. adapters available
Cabinet mounting	Yes Note: Doors not recommended in enclosed cabinets	Yes Note: Doors not recommended in enclosed cabinets
Wall mounting	No	No
Airflow	Front-to-back	Front-to-back
Performance	Fabric Seven switch fabric card slots: Support for 6 + 1 redundancy Operate in active/active nonblocking mode Built-in service-intelligence and traffic-prioritization capability	Fabric Seven switch fabric card slots: Supports 6 + 1 redundancy Operate in active/active nonblocking mode Built-in service-intelligence and traffic-prioritization capability
Thermal	Two fan trays: 12 high-efficiency fans per tray Variable-speed fans for optimal thermal performance No single point of failure	Four fan trays: 12 high-efficiency fans per tray Variable-speed fans for optimal thermal performance No single point of failure
Power	Modularity	Pay-as-you-grow power for future scalability, available in AC and DC Multiple power module types: 6 kW and 3 kW AC power modules 4.4 kW and 2.1 kW DC power modules Note: Mixing of AC and DC modules is not supported	Pay-as-you-grow power for future scalability, available in AC and DC Multiple power module types: 6 kW and 3 kW AC power modules 4.4 kW and 2.1 kW DC power modules Note: Mixing of AC and DC modules is not supported
Redundancy	AC: N+N redundancy DC: N+1 redundancy Power module redundancy A/B Feed redundancy PEM redundancy	AC: N+N redundancy DC: N+1 redundancy Power module redundancy A/B Feed redundancy PEM redundancy
Power zones	No power zone restrictions Fully load-sharing power infrastructure	No power zone restrictions Fully load-sharing power infrastructure
Power input	Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)	Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)
Power module airflow	Front-to-back	Front-to-back
Environmental Specifications (All Entries Applicable to Cisco ASR 9912 and ASR 9922)	Operating temperature (nominal)	41 to 104°F (5 to 40°C)	41 to 104°F (5 to 40°C)
Operating temperature (short-term)	23 to 131°F (-5 to 55°C)	23 to 131°F (-5 to 55°C)
Operating humidity (nominal) (relative humidity)	5 to 90%	5 to 90%
Storage temperature	-40 to 158°F (-40 to 70°C)	-40 to 158°F (-40 to 70°C)
Storage (relative humidity)	5 to 93%	5 to 93%
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)	-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Regulatory Compliance (All Entries Applicable to Cisco ASR 9912 and ASR 9922)	Network Equipment Building Standards (NEBS)	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: SR-3580: NEBS Criteria Levels (Level 3) GR-1089-CORE: NEBS EMC and Safety GR-63-CORE: NEBS Physical Protection VZ.TPR.9205: Verizon TEEER	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: SR-3580: NEBS Criteria Levels (Level 3) GR-1089-CORE: NEBS EMC and Safety GR-63-CORE: NEBS Physical Protection VZ.TPR.9205: Verizon TEEER
ETSI standards	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: EN300 386: Telecommunications Network Equipment (EMC) ETSI 300 019 Storage Class 1.1 ETSI 300 019 Transportation Class 2.3 ETSI 300 019 Stationary Use Class 3.1	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: EN300 386: Telecommunications Network Equipment (EMC) ETSI 300 019 Storage Class 1.1 ETSI 300 019 Transportation Class 2.3 ETSI 300 019 Stationary Use Class 3.1
EMC standards emission	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: FCC Class 47CFR15 A ICES 003 Class A AS/NZS CISRP22 Class A CISPR 22 (EN55022) Class A VCCI Class A BSMI Class A IEC/EN 61000-3-12: Power Line Harmonics IEC/EN 61000-3-11: Voltage Fluctuations and Flicker EN55022: Information Technology Equipment (Emissions) EN 50121-4: Railway EMC	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: FCC Class 47CFR15 A ICES 003 Class A AS/NZS CISRP22 Class A CISPR 22 (EN55022) Class A VCCI Class A BSMI Class A IEC/EN 61000-3-12: Power Line Harmonics IEC/EN 61000-3-11: Voltage Fluctuations and Flicker EN55022: Information Technology Equipment (Emissions) EN 50121-4: Railway EMC
EMC standards immunity	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) IEC/EN-61000-4-3: Radiated Immunity (10V/m) IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) IEC/EN-61000-4-5: Signal Surge Ports (1kV) IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations EN55024: Information Technology Equipment (Immunity) EN50082-1/EN-61000-6-1: Generic Immunity Standard EN 50121-4: Railway EMC	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) IEC/EN-61000-4-3: Radiated Immunity (10V/m) IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) IEC/EN-61000-4-5: Signal Surge Ports (1kV) IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations EN55024: Information Technology Equipment (Immunity) EN50082-1/EN-61000-6-1: Generic Immunity Standard EN 50121-4: Railway EMC
Safety	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: UL/CSA/IEC/EN 60950-1 IEC/EN 60825 Laser Safety ACA TS001 AS/NZS 60950 FDA Code of Federal Regulations Laser Safety	Cisco ASR 9912 and ASR 9922 Routers are designed to meet: UL/CSA/IEC/EN 60950-1 IEC/EN 60825 Laser Safety ACA TS001 AS/NZS 60950 FDA Code of Federal Regulations Laser Safety
