Designed for security, built for scale. Create a superior network edge with accelerated aggregation services, multicloud networking, high-speed routing, and edge intelligence.

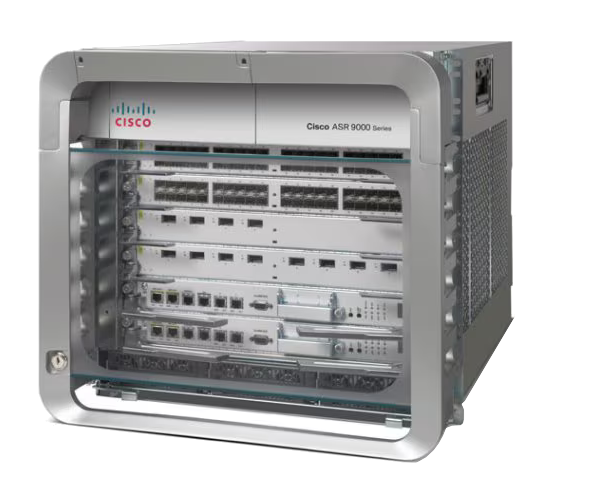

As a trusted Cisco reseller, ServerMonkey offers the Cisco ASR 9006 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Specification	Model	Cisco ASR 9006	Cisco ASR 9010
Categories	Physical specifications	Height: 17.50 in. (444.5 mm) (10 RU) Width: 17.38 in. (441.45 mm) Depth: With doors: 29.05 in. (737.9 mm) Without doors: 29.05 in. (737.9 mm) Weight: 89.55 lb (40.7 kg) (chassis with PEM) 150 lb (65.91 kg) (fully loaded, excluding line cards and power modules) – RSP, two v2 FAN trays, PEMs	Height: 36.75 in. (933.45 mm) (21 RU) Width: 17.38 in. (441.45 mm) Depth: With doors: 29.03 in. (737.4 mm) Without doors: 28.24 in. (717.3 mm) Weight: 155.6 lb (70.73 kg) (chassis with PEM) 231.6 lb (105.27 kg) (fully loaded, excluding line cards and power modules) – RSP, two v2 fan trays, PEMs
Categories	Slot orientation	Horizontal	Vertical
Cisco ASR 9000 Series RSP	Dual redundant RSPs with integrated fabric in 2 slots	Dual redundant RSPs with integrated fabric in 2 slots
Cisco ASR 9000 Series RSP	Cisco ASR 9000 Series line cards	4 line-card slots	8 line-card slots
“Commons” components	2 RSPs 2 fan trays 1 PEM (either DC or AC) 1 fan filter	2 RSPs 2 fan trays 2 PEMs (either DC or AC) 1 fan filter
Reliability and availability	Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy	Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy
Rack mounting	19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation	19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation
Cabinet mounting	Yes Note: Doors not recommended in enclosed cabinets	Yes Note: Doors not recommended in enclosed cabinets
Wall mounting	No	No
Airflow	Right-to-back, Front-to-back with baffle	Front-to-back
Performance	Fabric	One per RSP: Active/active nonblocking operation mode in dual-RSP redundant configuration Fully redundant in dual-RSP redundant configuration Built-in service-intelligence and traffic-prioritization capability	One per RSP: Active/active nonblocking operation mode in dual-RSP redundant configuration Fully redundant in dual-RSP redundant configuration Built-in service-intelligence and traffic-prioritization capability
Thermal	Two fan trays: 6 high-efficiency fans per tray Variable-speed fans for optimal thermal performance No single point of failure	Two fan trays: 12 high-efficiency fans per tray Variable-speed fans for optimal thermal performance No single point of failure
Power	Modularity	Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: 3 kW AC power module 2.1 kW DC power module Note: Mixing of AC and DC modules is not supported	Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: 6 kW and 3 kW AC power modules 4.4 kW and 2.1 kW DC power modules Note: Mixing of AC and DC modules is not supported
	Redundancy	AC: N+N redundancy DC: N+1 redundancy Power module redundancy A/B Feed redundancy	AC: N+N redundancy DC: N+1 redundancy Power module redundancy A/B Feed redundancy PEM redundancy
	Power zones	No power zone restrictions Fully load-sharing power infrastructure	No power zone restrictions Fully load-sharing power infrastructure
Power input	Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)	Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)
Power-module airflow	Front-to-back	Front-to-back
Environmental Specifications (All Entries Applicable to Cisco ASR 9006 and ASR 9010)	Operating temperature (nominal)	41 to 104°F (5 to 40°C)	41 to 104°F (5 to 40°C)
Operating temperature (short-term)	ASR 9006: 23 to 131°F (-5 to 55°C)	ASR 9010: 23 to 122°F (-5 to 50°C)
Operating humidity (nominal) (relative humidity)	5 to 90%	5 to 90%
Storage temperature	-40 to 158°F (-40 to 70°C)	-40 to 158°F (-40 to 70°C)
Storage (relative humidity)	5 to 93%	5 to 93%
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)	-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Regulatory Compliance (All Entries Applicable to Cisco ASR 9006 and ASR 9010)	Network Equipment Building Standards (NEBS)	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: SR-3580: NEBS Criteria Levels (Level 3) GR-1089-CORE: NEBS EMC and Safety GR-63-CORE: NEBS Physical Protection VZ.TPR.9205: Verizon TEEER	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: SR-3580: NEBS Criteria Levels (Level 3) GR-1089-CORE: NEBS EMC and Safety GR-63-CORE: NEBS Physical Protection VZ.TPR.9205: Verizon TEEER
ETSI standards	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: EN300 386: Telecommunications Network Equipment (EMC) ETSI 300 019 Storage Class 1.1 ETSI 300 019 Transportation Class 2.3 ETSI 300 019 Stationary Use Class 3.1	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: EN300 386: Telecommunications Network Equipment (EMC) ETSI 300 019 Storage Class 1.1 ETSI 300 019 Transportation Class 2.3 ETSI 300 019 Stationary Use Class 3.1
EMC standards emission	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: FCC Class 47CFR15 A ICES 003 Class A AS/NZS CISRP22 Class A CISPR 22 (EN55022) Class A VCCI Class A BSMI Class A IEC/EN 61000-3-12: Power Line Harmonics IEC/EN 61000-3-11: Voltage Fluctuations and Flicker EN55022: Information Technology Equipment (Emissions) EN 50121-4: Railway EMC	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: FCC Class 47CFR15 A ICES 003 Class A AS/NZS CISRP22 Class A CISPR 22 (EN55022) Class A VCCI Class A BSMI Class A IEC/EN 61000-3-12: Power Line Harmonics IEC/EN 61000-3-11: Voltage Fluctuations and Flicker EN55022: Information Technology Equipment (Emissions) EN 50121-4: Railway EMC
EMC standards immunity	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) IEC/EN-61000-4-3: Radiated Immunity (10V/m) IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) IEC/EN-61000-4-5: Signal Surge Ports (1kV) IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations EN55024: Information Technology Equipment (Immunity) EN50082-1/EN-61000-6-1: Generic Immunity Standard EN 50121-4: Railway EMC	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) IEC/EN-61000-4-3: Radiated Immunity (10V/m) IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) IEC/EN-61000-4-5: Signal Surge Ports (1kV) IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations EN55024: Information Technology Equipment (Immunity) EN50082-1/EN-61000-6-1: Generic Immunity Standard EN 50121-4: Railway EMC
Safety	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: UL/CSA/IEC/EN 60950-1 IEC/EN 60825 Laser Safety ACA TS001 AS/NZS 60950 FDA Code of Federal Regulations Laser Safety	Cisco ASR 9006 and ASR 9010 Routers are designed to meet: UL/CSA/IEC/EN 60950-1 IEC/EN 60825 Laser Safety ACA TS001 AS/NZS 60950 FDA Code of Federal Regulations Laser Safety
