Technical specifications

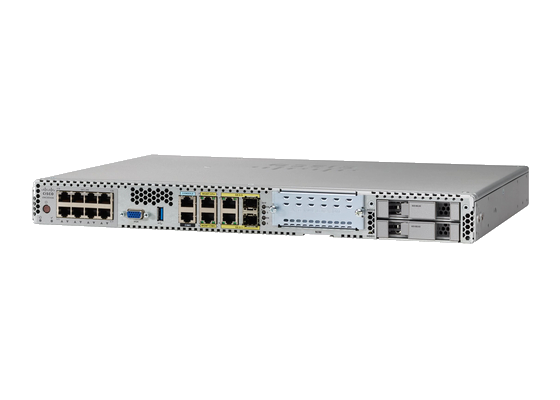

Cisco 5400 ENCS

CPU

Intel Xeon Broadwell DE Processor D-1500 Family

ENCS5412: Intel Xeon Processor D-1557
(12-core, 1.5 GHz, and 18 MB L2 cache)

ENCS5408: Intel Xeon Processor D-1548
(8-core, 2.0 GHz, and 12 MB L2 cache)

ENCS5406: Intel Xeon Processor D-1528
(6-core, 1.9 GHz, and 9 MB L2 cache)

DRAM

2 DIMM slots, each with 8, 16, or 32 GB ECC DDR4 RAM

16 GB default single DIMM

64 GB maximum system capacity

Motherboard storage

M.2 SATA – 64 GB (default), 200 GB, and 400 GB options

Disk drives (SFF)

Up to 2 Small Form Factor (SFF):

7200-rpm SATA: 1 TB, 2 TB

10000-rpm SAS SED: 1.2 TB

10000-rpm SAS: 1.8 TB

SATA SSD eMLC: 480 GB, 960 GB

RAID options

Optional hardware LSI MegaRAID SAS 3108 Controller

Total onboard WAN or LAN ports

2 GE WAN or LAN port
(dual-mode RJ-45 and SFP)

Built-in 8-port GE LAN switch with PoE capability

GE management port for Intel x86 Host

NIM slots

1

OIR (all I/O modules)

Yes

External USB 2.0 slots (type A)

1

Serial console port

RJ-45 (up to 115.2 Kbps)

Power-supply options

Single, internal: AC and PoE

PoE support is available on 5408 and 5412 Enterprise Network Compute System models only

AC input voltage

100 to 240 VAC auto-ranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

3.8 to 1.3A

AC input surge current

60A peak and less than 5 arms per half cycle

Typical power (no modules) (Watts)

125W

Maximum power with AC power supply (Watts)

180W (no PoE)

Maximum power with PoE power supply (platform only; Watts)

380W with PoE

Total PoE budget

200W

Platform supports Universal PoE (60W maximum per LAN port)

Dimensions
(H x W x D)

1.73 x 17.25 x 13.3 in (includes power supply unit and NIM mounts)

(4.4 x 43.8 x 33.8 cm)

Shipping box dimensions
(H x W x D)

6.8 x 16.1 x 21.5 in

(17.3 x 40.9 x 54.6 cm)

Rack height

1 Rack Unit (1RU)

Rack-mount 19 in. (48.3 cm) EIA

Optional

Rack-mount 23 in. (58.4 cm) EIA

Optional

Wall mount

Optional

Weight

13.0 lb (5.9 kg) without modules or external drives

Airflow

I/O side to bezel side

Temperature

32° to 104°F
(0° to 40°C)

Altitude

(China)

0–6560 ft.

(0–2000 m)

Altitude

(All worldwide locations except China)

0–10,000 ft.

(0–3050 m)

Relative humidity

10% to 90%

Short-term humidity

5% to 95%, not to exceed 0.024 kg water/kg of dry air

Acoustics:

Sound pressure (typical/maximum)

45.2/61 dBA

Acoustics:

Sound power (typical/maximum)

58.2/78.8 dBA

Non-operating temperature

-4° to 158°F
(-20° to 70°C)

Non-operating relative humidity

5% to 95%

Non-operating altitude

-1000 ft (-304 m) to 15,584 ft (4750 m)

Safety

UL 60950-1

CAN/CSA C22.2 No. 60950-1

EN 60950-1

AS/NZS 60950-1

IEC 60950-1

EMC

47 CFR Part 15

KN 32

EN 55032

CISPR 32

EN61000-3-2

EN61000-3-3

EN 300 386

ICES-003

VCCI V3

TCVN 7189

CNS13438

CISPR24

EN55024

KN35

TCVN 7317

Telecom

T1

IC CS-03:2004

TIA-968-B:2009

HKTA 2028:2010

HKTA 2017:2010

HKTA 2015: 2006

G.703:2001

ID0002:2007

IS6100:2004

DSPR Gray Book:2000

DSPR Technical Condition: 2004

E1

AS/ACIF S016: 2001

AS/ACIF S038: 2001

G.703:2001

TBR 4:1995

TBR 12:1993

TBR 13:1996

RRA 2009-38

(RRL 2005-96)

IDA TS DLCN:2011

IDA TS ISDN PRA:2005

IS6100: 2004

PTC 220:2008

Ethernet

IEEE 802.3

ANSA X3.263
