The Cisco ISR 4461 is a high-performance router designed to meet the networking demands of businesses. With its advanced features and reliable performance, it's the perfect choice for organizations seeking robust networking solutions.

As a trusted Cisco reseller, ServerMonkey offers the Cisco ISR 4461 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Feature	Specification
Authentication and security	● TACACS+ ● RADIUS ● Local, role-based access control
External power supply	● Product power specifications: ● External Adapter: 30W 341-100891-01 ● AC input voltage: Universal 100 to 240 VAC ● Frequency: 50 to 60 Hz ● Maximum output power: 30W ● Output voltage: +12VDC for system power
LEDs	● System status: off = no power, green steady on = normal operation, amber steady on = system going down/fault, amber blink = boot up phase ● OMP Status: Green steady on = Connection is up, Off = Connection is down ● 1x green per Ethernet; off = no link, steady on = link connected, blink = traffic flowing ● SIM: green; off = no SIM, steady on = SIM present, blink: traffic flowing (Applicable only to the ISR1100-4GLTENA and ISR1100-4GLTEGB) ● 1x green per SFP

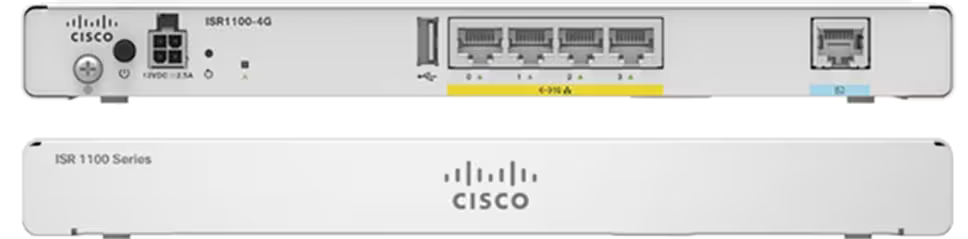

Physical dimensions (W x D x H)	● ISR 1100 and ISR1100X Series - 10.2 x 7 x 1.1 in (259 x 178 x 28 mm)
Weight	● ISR 1100X-4G,ISR1100X-6G,ISR1100-4G,ISR1100-6G – 2.67 lbs (1.21 kg) ● ISR 1100-4GLTENA, ISR1100-4GLTEGB – 2.69 lbs (1.22 kg)
Standard safety certifications	● UL 60950-1, second edition ● CAN/CSA C22.2 No. 60950-1, second edition ● EN 60950-1, second edition ● CB to IEC 60950-1, second edition with all group differences and national deviations ● AS/NZS 60950.1:2011 ● IEC-62368 (CB and UL/CSA) ● NOM-019-SCFI-1998 ● GB4943
EMC emissions	● EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, KN22, TCVN 7189, and EN61000-6-1
EMC immunity	● EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), EN61000-6-1, KN24, TCVN 7317, and EN300-386
Environmental operating range	● Operating temperature: 0 to 40°C (32 to 104°F) at sea level (temperature derating of 1.5°C per 1000 feet of altitude applicable up to max of 10,000 feet or 3000 m) ● Operating altitude: Maximum 10,000 ft (3000 m) with 1°C derating per 1000 ft ● Operating humidity: 0 to 95% relative humidity noncondensing
