Details:
Description
Performance and capacity
  Base Hardware w/ Silver License w/ Gold License
Maximum campus or remote access points 512 1,024 2,048
Maximum concurrent users/devices 16,384 24,576 32,768
Maximum VLANs 4,096 4,096 4,096
Active firewall sessions 2,015,291 2,015,291 2,015,291
Concurrent GRE tunnels 8,192 16,384 32,768
Concurrent IPsec sessions 16,384 24,576 32,768
Concurrent SSL sessions 8,192 8,192 8,192
Concurrent tunneled ports 8,192 12,288 16,384
Firewall throughput (Gbps) 20 30 40
Wired bridged throughput (Gbps) 20 30 40
Encrypted throughput GRE (Gbps) 20 30 40
Encrypted throughput 3DES (Gbps) 20 27 29
Encrypted throughput AES-CBC-128 (Gbps) 20 30 38
Encrypted throughput AES-CBC-256 (Gbps) 20 30 39
Encrypted throughput AES-CCM (Gbps) 20 28 30
Encrypted throughput AES-GCM-128 (Gbps) 20 30 40
Encrypted throughput AES-GCM-256 (Gbps) 20 30 40
Interfaces and indicators
Form factor 1 RU
Interface 4x SFP28
Out of band management port 1x RJ45
Console port USB-C, RJ45
USB 3.0 Type-A 2
LCD display 1
Power LED Yes
Status LED Yes
Peered LED (reserved for future use) Yes
Expansion slot (reserved for future use) 1
Power supply slots 1 + redundant
Fan trays 5
Physical
Dimensions (HxWxD) 1.73” x 17.40” x 15.60”
(4.4 cm x 44.2 cm x 39.6 cm)
Weight 18.08 lbs (8.2 kg)
MTBF (Hours at 25C with Fans and PSU) 185,301
Environmental
Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature –40 °C to 70 °C (–40 °F to 158 °F)
Humidity/Storage humidity 10% to 90% (RH)/10% to 95% (RH), non-condensing
Operating altitude 10,000 feet
Acoustic noise1 65.2 dBA (Typ)
Maximum heat dissipation (BTU/hour) 648 BTU/hr
Maximum power consumption 190W
Power source 550-watt power supply

1Sound power per ETSI 300 753 in accordance with ISO 7779
Power supply certifications
Input voltage range 100 VAC to 240 VAC
Output voltage 12V
Input frequency 50-60 Hz
AC line input current (steady state) 7.1A
Operating temperature 0 °C to 55 °C
Cooling Internal fan (air flow rear to front)
Weight 0.8 kg
Regulatory and safety compliance
Minimum Supported Software Version 8.10
Safety Certifications EN 62368-1, Ed.2:2014
UL 62368-1, 2nd Edition
CAN/CSA C22.2 No. 62368-1-14
Electromagnetic Emissions Certifications FCC Part 15 Class B
CISPR32 Class B
EN55032 Class B
ICES-003 Class B
EN 61000-3-2
EN 61000-3-3
EN55035
KN32 Class B /KN35
CNS13438
AS/NZS CISPR32 Class B
VCCI Class A
Telco Common Language Equipment Identifier (CLEI) Code
Service and warranty information
Hardware: 1-year parts/ labor, can be extended with support contract
Mobility Controller Software: 90 days, can be extended with support contract

CONTACT US TO LEARN MORE

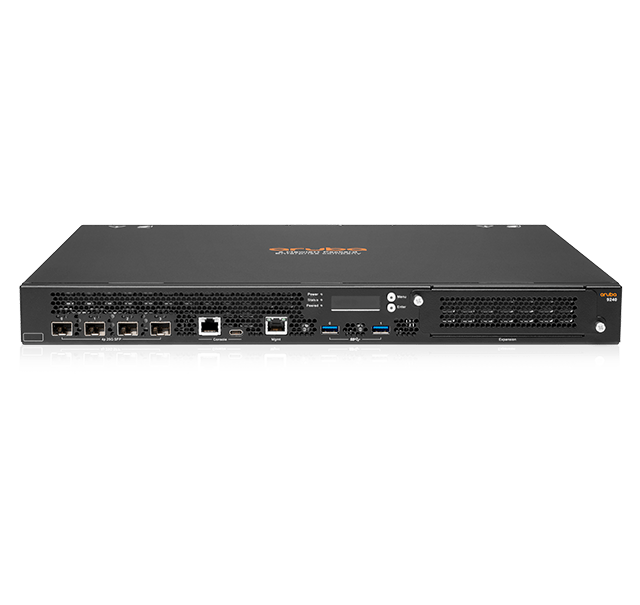

ABOUT Aruba 9200 Series
