Details:
Description
Performance and capacity
Features 9106 9114
Firewall throughput (Gbps) 10 20
Encrypted throughput GRE (Gbps) 10 20
Encrypted throughput AES-CBC-128 (Gbps) 10 20
Encrypted throughput AES-CBC-256 (Gbps) 10 20
Encrypted throughput AES-GCM-128 (Gbps) 10 20
Encrypted throughput AES-GCM-256 (Gbps) 10 20
Cluster size 6 6
Maximum clients (User MAC) 8K 10K
Maximum clients per cluster 32K 40K
Max devices (APs) 2K 4K
Max devices (APs) per cluster 4K 8K
Maximum Datapath / Firewall sessions 2M 2M
Concurrent IPSec Tunnels 16K 32K
Total Tunnels 20K 40K
ARP 16K 20K
Max DHCP Clients 16K 32K
Maximum Bridge Table 256K 512K
Max IPv4 Static Routes 2K 2K
IPV6 Neighbors 32K 40K
Maximum routes 32K 12K
Access Control Lists 2678 2678
Configurable Bandwidth Contracts 1K 1K
Interfaces and indicators
Features 9106 9114
Form Factor Desktop 1 RU
Interface 2x SFP+
2x Combo (SFP/1G Copper)
2x 1GbE		 4x SFP+
4x Combo (SFP/1GbE Copper)
PoE Budget 60W -
Out of Band Management Port 1x RJ45 1x RJ45
Console port USB-C, RJ45 USB-C, RJ45
USB 3.0 Type-A 1 2
LCD Display - 1
Power LED Yes Yes
Status LED Yes Yes
Gateway LED Yes TBD
Peered LED (reserved for future use) TBD TBD
Expansion slot (reserved for future use) - 1
Power supply slots - 1 + redundant
Fan trays - 3
Physical
Features 9106 9114
Dimensions (HxWxD) 43.7 mm (H) x 294.8 mm (W) x 201.05mm (D) 43.7 mm (H) x 442mm (W) x 351 mm (D)
Weight 2.305 kg 6.2 kg
MTBF (Hours at 25 °C with Fans and PSU) 236,076 280,165
Environmental
Features 9106 9114
Operating temperature 0 °C to 40 °C (32 °F to 104 °F) 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature –40 °C to 70 °C (–40 °F to 158 °F) –40 °C to 70 °C (–40 °F to 158 °F)
Humidity/Storage humidity 10% to 90% (RH)/10% to 95% (RH), non-condensing 10% to 90% (RH)/10% to 95% (RH), non-condensing
Operating altitude 10,000 feet 10,000 feet
Acoustic noise1 54.6 dBA 61.8 dBA
Maximum heat dissipation (BTU/hour) 290 631
Maximum power consumption 150W 185W
Power source 165W 250-watt power supply

1Sound power per ETSI 300 753 in accordance with ISO 7779
Power supply certifications
Features 9106 9114
Input voltage range 100 VAC to 240 VAC 100 VAC to 240 VAC
Output voltage 54V 12V
Input frequency 50 to 60 Hz 50 to 60 Hz
AC line input current (steady state) 2.5A 2.2A-0.9A
Operating temperature 0 to 40 °C 0 to 60 °C
Cooling - 1 fan
Weight 0.5 +/- 0.02 kg 0.9 kg
Regulatory and safety compliance
Features 9106 9114
Minimum Supported Software Version AOS 10.6 AOS 10.5
Regulatory SKU information ARCN9106 ARCN9114
Safety Certifications CSA/UL 62368-1:2014
CSA/UL 62368-1:2019
EN/IEC 62328-1, 2nd edition
EN/IEC 62368-1, 3rd edition		 CSA/UL 62368-1:2014
CSA/UL 62368-1:2019
EN/IEC 62328-1, 2nd edition
EN/IEC 62368-1, 3rd edition
Electromagnetic Emissions Certifications FCC Part 15, Class B
EN55032, Class B
ICES-003, Class B
CNS13438, Class B
EN55035
EN 300 386
KS C 9832:2019
KS C 9835:2019
AS/NZS CISPR32 Class B
VCCI Class B		 FCC Part 15, Class A
EN55032, Class A
ICES-003, Class A
CNS13438, Class A
EN55035
EN 300 386
KS C 9832:2019
KS C 9835:2019
AS/NZS CISPR32 Class A
VCCI Class A

CONTACT US TO LEARN MORE

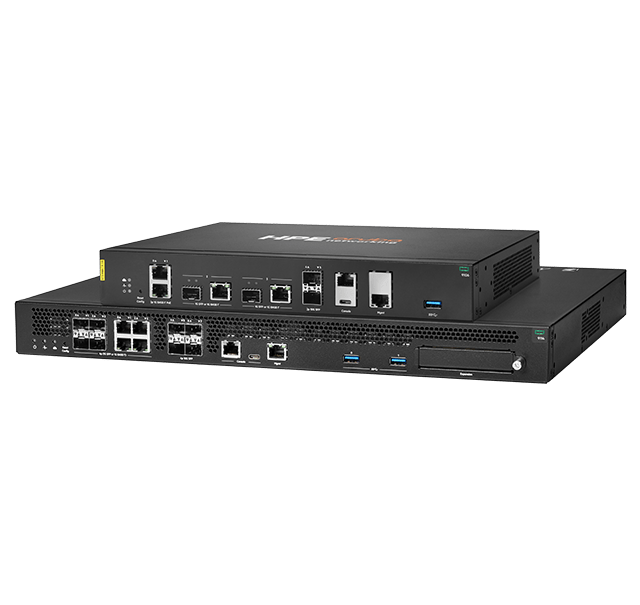

ABOUT Aruba 9100 Series
