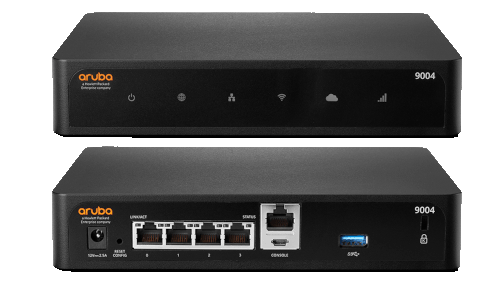

Aruba 9000 Series

	9004	9004-LTE	9012
SD-Branch *1.1	Supported	Supported	Supported
WLAN Gateway *1.2	Supported	Not Supported	Supported
Sizing	Small site	Small site	Medium Site
Interfaces	4x GbE 2	4x GbE 4G Cellular	12x GbE
Power over Ethernet	x	x	x (120W)
Maximum campus or remote Access Points	32	N/A	32
Maximum clients	Up to 2,048*	Up to 2,048*	Up to 2,048*
Active Firewall sessions	64K (128K on SD-Branch 2.3+) 3	64K (128K on SD-Branch 2.3+) 3	64K (128K on SD-Branch 2.3+) 3
Maximum concurrent users/devices	2,048	2,048	2,048
Maximum VLANs	4,096	4,096	4,096
Concurrent GRE tunnels	544	544	544
Concurrent IPsec sessions	2,048	2,048	2,048
Concurrent SSL sessions	2,048	2,048	2,048
Concurrent tunneled ports	2,048	2,048	2,048
Firewall throughput (Gbps)	4	4	6
Wired bridged throughput (Gbps)	4	4	6
Encrypted throughput 3DES (Gbps)	4	4	4
Encrypted throughput AES-CBC-256 (Gbps)	4	4	4
Encrypted throughput AES-CCM (Gbps)	2	2	2
Encrypted throughput AES-GCM-256 (Gbps)	2	2	2

^*1 These modes are only enabled when the appropriate minimum licenses and ArubaOS firmware are deployed:

• ^1.1 SD-WAN Mode – Aruba Central Foundation, Foundation Base, or Advanced Licenses
• ^1.2 Controller Mode – ArubaOS Licenses

^*2 The 9004 was originally released (8.5) to operate in an Auto/Auto configuration. A software fix was introduced in 8.7.1.5, 8.8.0.2, 10.2.0.3, and SDWAN-2.3.0.2, which allows users to configure the speed and duplex of the interfaces on the 9004 to: Auto/Auto, 1000/Full, or 100/Full.

Speed Configuration
The 9004 Interface speed can now be set to Auto/1000/100.

Full Duplex Configuration
9004 Interface = Auto
Partnering Device Duplex Configuration = Full
Partnering Device Auto Negotiation = Enabled

^*3 Prior to 8.6, the active number of firewall sessions was set to 32K.

Features	9004/9004-LTE	9012
Form factor/footprint	Desktop/Fanless2 Optional Mount Rack Tray	Rack mount
100/1000BASE-T	4	12 (6x PoE+ ports)
10G SFP+ Ports (SFP also supported)	-	-
Bluetooth 5	Yes	Yes
USB 3.0 Type-A	1	2
System status LED	Yes	Yes
WAN ports status LED	Yes	Yes
LAN ports status LED	Yes	Yes
Gateway mode LED	Yes	Yes
Central connectivity status LED1	Yes	Yes
LTE status LED	Yes	Yes
Console port	micro USB, RJ45	micro USB, RJ45

Available on the 9004-LTE only
Downlink/Uplink Speed	600/150 Mbps
LTE Category	12
Connectors	2xSMA connectors for Main and Diversity Antenna 1xSMA connector for GPS Antenna

Bands Supported
Regions Supported	Global
LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B32/B66
LTE-TDD	B38/39/B40/B41
2 x CA	B1+B3/B5/B18/B19/B20/B21/B26; B2+B2/B4/B5/B12/B13/B17/B29/B30/B66; B3+B3/B5/B7/B8/B19/B20/B28; B4+B4/B5/B12/B13/B17/B29/B30; B5+B7/B25/B30/B66; B7+B7/B20/B28; B12+B25/B30; B13+B66; B20+B32; B25+B25/B26/B41; B29+B30; B38+B38; B40+B40; B41+B41; B66+B66
3 x CA	DL inter-band 3CA: B1+B3+B7; B1+B3+B19; B1+B3+B20; B1+B19+B21; B2+B4+B5; B2+B4+B13; B2+B5+B30; B2+B12+B30; B2+B29+B30; B3+B7+B20; B3+B7+B28; B4+B5+B30; B4+B12+B30; B4+B29+B30; B5+B66+B2; B13+B66+B2 DL 2 contiguous plus inter-band 3CA: B2+B2+B5; B2+B2+B13; B3+B3+B7; B3+B7+B7; B3+B3+B20; B4+B4+B5; B4+B4+B13; B5+B66+B66; B13+B66+B66; B66+B66+B2; B66+B66+B66
UMTS	B1/B2/B3/B4/B5/B8/B19
Certifications	CE/ FCC/ IC/ NCC/ RCM/ GCF*/ PTCRB*/ ICASA* / WHQL ATT & VZW

	9004/9004-LTE	9012
Dimensions (HxWxD)	3.82 cm x 19.85 cm x 15.31 cm (1.5" x 7.815" x 6.03")	4.37 cm x 39.5 cm x 26.00 cm (1.72" x 15.55" x 10.24")
Weight	1.143 kg (2.519 lbs)	3.42 kg (7.54 lbs)

Specification	9004/9004-LTE	9012
Operating Temperature	0° C to 40° C (32° C to 104° F)	0° C to 40° C (32° C to 104° F)
Storage Temperature	-40° C to 70° C (-40° F to 158° F)	-40° C to 70° C (-40° F to 158° F)
Operating Humidity	10% to 90% (RH), non-condensing	10% to 90% (RH), non-condensing
Storage Humidity	10% to 95% (RH), non-condensing	10% to 95% (RH), non-condensing
Operating Altitude	10,000 feet	10,000 feet
Acoustic Noise	0 dBA (fanless)	29.1 – 63.5 dBA
Cooling	Conduction cooling	Forced cooling
Maximum Power Consumption	25W (with USB)	160W (with 120W of PoE)
Power Source	12v DC, 2.5A AC-to-DC power adapter	Internal Power Supply 90VAC – 264VAC 47-63Hz 3A at 100Vrms

Features	9004/9004-LTE
Input voltage range	90 VAC to 264 VAC
Output voltage	+12VDC, 2.5A
Input frequency	47-63 Hz
AC line input current (steady state)	1.0A
Operating temperature	-0° to +40° C
Cooling	-
Weight	.28 kg (.61 lbs)

Description	9004/9004-LTE	9012
Minimum Software Versions	SD-WAN R1.7 (default) and Aruba Central 2.5.x in SD-WAN mode, or ArubaOS 8.5.0.0 in Mobility Controller mode. Wi-Fi 6 (802.11ax), AOS 8.5; Wi-Fi CERTIFIED WPA3™, AOS 8.5; Wi-Fi CERTIFIED Enhanced Open™, AOS 8.5	SD-WAN R2.0 (default) and Aruba Central 2.5.x in SD-WAN mode,ArubaOS (Future) in Mobility Controller mode.
AOS 8 (WLAN Gateway Mode)	9004: 8.5.0.5 9004-LTE: Not Supported	8.7.1.1 or 8.8.0.0
SD-Branch	9004: SD-WAN R1.7 and Aruba Central 2.5.x in SD-WAN mode 9004-LTE: SD-WAN R2.2.0.2 or R2.3.0.0 and Aruba Central 2.51.x in SD-WAN mode	SD-WAN R2.2.0.2 or R2.3.0.0 and Aruba Central 2.5.x in SD-WAN mode
Regulatory SKU information	ARCN9004	ARCN9012
Safety certifications	UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition EN 60950:2005 IEC 60950-1 Second Edition EN/IEC 62368-1 2nd Edition NOM (obtained by partners and distributors)	UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition EN 60950:2005 IEC 60950-1 Second Edition EN/IEC 62368-1 2nd Edition NOM (obtained by partners and distributors)
Electromagnetic emissions certifications	FCC Part 15 Class B CISPR32 Class B EN55022 Class B ICES-003 Class B EN61000-3-2 EN61000-3-3 EN55024, EN301 489-1/-17 KN32 Class B (9004), KN35, KN301 489-1/-17 CNS13438 Class B	FCC Part 15 Class A CISPR32 Class A EN55032 Class A ICES-003 Class A EN61000-3-2 EN61000-3-3 EN55024, EN301 489-1/-17 KN32 Class A, KN35, KN301 489-1/-17 CNS13438 Class A
Telco	Common Language Equipment Identifier (CLEI) Code	Common Language Equipment Identifier (CLEI) Code
Wireless certifications	FCC/ISED RED Directive 2014/53/EU Others:  MIC, NCC, ANATEL, COFTEL, CCC	FCC/ISED RED Directive 2014/53/EU Others:  MIC, NCC, ANATEL, COFTEL, CCC

Hardware: 1 year parts/labor, can be extended with support contract

Mobility Controller Software: 90 days, can be extended with support contract

SD-WAN Gateway Software: 1, 3, 5, 7, or 10 year subscription licenses
