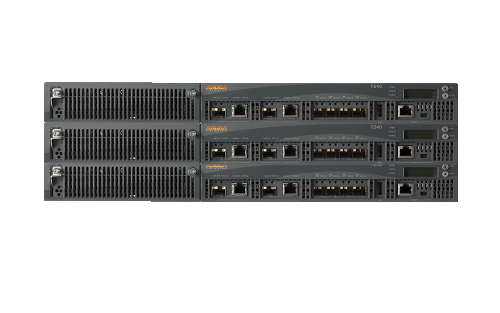

7200 Series :: Gateway Controllers :: Enterprise Wireless LAN :: Aruba :: Networking

ARUBA access points allow you to deploy and manage high-speed networks while also providing best-in-class security, reliable network performance, and flexible scalability. Browse Aruba solutions or contact a servermonkey expert and start your journey to a growing high-performance, secure network solution that can grow with you.

As a trusted Aruba reseller, ServerMonkey offers the Aruba 7200 Series at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Performance and capacity

Features	7205	7210	7220	7240XM	7280
Maximum campus or remote AP licenses	256	512	1,024	2,048	2,048
Maximum concurrent users/devices	8,192	16,384	24,576	32,768	32,768
Maximum VLANs	4,096	4,096	4,096	4,096	4,096
Active firewall sessions	1 million (M)	2M	2M	2M	2M
Concurrent GRE tunnels	4,096	8,192	16,384	32,768	32,768
Concurrent IPsec sessions	8,192	16,384	24,576	32,768	32,768
Concurrent SSL sessions	4,096	8,192	8,192	8,192	8,192
Firewall throughput (Gbps)	12	20	40	40	100
Wired Bridged throughput (Gbps)	12	20	40	40	100
Encrypted throughput 3DES (Gbps)	5	7	25	28	57
Encrypted throughput AES-CBC-256 (Gbps)	5	7	22	30	46
Encrypted throughput AES-CCM (Gbps)	5	7	20	29	75
Encrypted throughput AES-GCM-256 (Gbps)	5	7	26	35	70

Interfaces and indicators

Features	7205	7210	7220	7240XM	7280
Form factor/footprint	1xRU	1xRU	1xRU	1xRU	1xRU
10/100/1000BASE-T	4xCombo	2xCombo	2xCombo	2xCombo	-
1000BASE-X	4xCombo	2xCombo	2xCombo	2xCombo	-
10G Ports (10G or 1G supported)	2xSFP+	4xSFP+	4xSFP+	4xSFP+	8xSFP+
40G Ports	-	-	-	-	2xQSFP+
USB 2.0	2	1	1	1	1
Management/status LEDs	Yes	Yes	Yes	Yes	Yes
LINK/ACT and status LEDs	Yes	Yes	Yes	Yes	Yes
LCD panel and navigation buttons	Yes	Yes	Yes	Yes	Yes
Console port	micro USB, RJ-45	mini USB, RJ-45	mini USB, RJ-45	mini USB, RJ-45	micro USB, RJ-45
Out-of-band management port	Yes	No	No	No	Yes

Physical

Features	7205	7210	7220	7240XM	7280
Dimensions (H x W x D)	4.4 cm x 44.2 cm x 33.4 cm (1.75" x 17.38" x 13.13")	4.4 cm x 44.5 cm x 44.5 cm (1.75" x 17.5" x 17.5")	4.4 cm x 44.5 cm x 44.5 cm (1.75" x 17.5" x 17.5")	4.4 cm x 44.5 cm x 44.5 cm (1.75" x 17.5" x 17.5")	4.4 cm x 44.2 cm x 40.1 cm (1.73" x 17.4" x 15.79")
Weight	4.95 kg (10.19 lbs)	7.45 kg (16.43 lbs)	7.45 kg (16.43 lbs)	7.45 kg (16.43 lbs)	7.9 kg (17.41 lbs)
MTBF (Hours)	129,597 (@40C)	106,536 (@40C)	113,751 (@40C)	116,590 (@40C)	281,896 (@40C)

Environmental range

Features	7205	7210	7220	7240XM	7280
Operating Temperature	0° C to 40° C	0° C to 40° C	0° C to 40° C	0° C to 40° C	0° C to 40° C
Storage Temperature	-40° C to 70° C	-40° C to 70° C	-40° C to 70° C	-40° C to 70° C	-40° C to 70° C
Humidity/Storage Humidity	10% to 95%, NC	5% to 95%, NC	5% to 95%, NC	5% to 95%, NC	5% to 95%, NC
Operating Altitude	10,000 feet	10,000 feet	10,000 feet	10,000 feet	10,000 feet
Acoustic Noise¹	49 dBA	52.9 dBA	52.9 dBA	52.9 dBA	47.1 dBA
Maximum Heat Dissipation (BTU/hour)	260	375	427	563	819
Maximum Power Consumption	75.2W	110W	125W	165W	240W
Power Source	Internal power supply	350-watt AC or DC power supply	350-watt AC or DC power supply	350-watt AC or DC power supply	550-watt power supply

¹ Sound power per ETSI 300 753 in accordance with ISO 7779

Power adapter and supply specifications

Features	350-watt AC	350-watt DC	550-watt
Input voltage range	100 VAC to 240 VAC	DC -48V to DC -60V	100 VAC to 240 VAC
Output voltage	+12VDC, 29.16A	+12VDC, 29.16A	+12VDC, 29.16A
Input frequency	50-60 Hz	50-60 Hz	50-60 Hz
AC line input current (steady state)	5 - 2.5A	5 - 2.5A	7.1 - 3.4A
Operating Temperature	-5° to +55° C	-5° to +55° C	-5° to +55° C
Cooling	Internal fan (Air flow rear to front)	Internal fan (Air flow rear to front)	819 Internal fan (Air flow rear to front)
Weight	1.3 kg (2.8 lbs)	1.3 kg (2.8 lbs)	0.87 kg (1.9 lbs)

Regulatory and safety compliance

Features	Specification
Regulatory SKU information	ARCN7205 (7205) ARCN0100 (7210) ARCN0101 (7220) ARCN0102 (7240XM) ARCN7280 (7280)
Minimum ArubaOS Release	6.4.3.0 (7205) 6.2.0.0 (7210) 6.2.0.0 (7220) 6.4.4.0 (7240XM) 6.5.4.0 or 8.3.0.0 (7280)
	802.11ax (Wi-Fi 6), AOS 8.4; WI-FI CERTIFIED WPA3™, AOS 8.4; WI-FI CERTIFIED Enhanced Open™, AOS 8.4
Regulatory and Safety Compliance	FCC Part 15 Class A CE Industry Canada Class A VCCI Class A (Japan) EN 55022 Class A (CISPR 22 Class A), EN 61000-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55024, AS/NZS 3548 UL 60950, EN 60950 CAN/CSA 22.2 #60950 CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC
Telco	Common Language Equipment Identifier (CLEI) Code

Service and warranty information

Hardware: 1 year parts/labor, can be extended with support contract

Software: 90 days, can be extended with support contract
