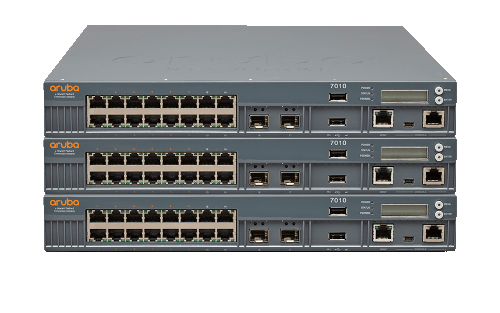

7000 Series :: Gateway Controllers :: Enterprise Wireless LAN :: Aruba :: Networking

ARUBA access points allow you to deploy and manage high-speed networks while also providing best-in-class security, reliable network performance, and flexible scalability. Browse Aruba solutions or contact a servermonkey expert and start your journey to a growing high-performance, secure network solution that can grow with you.

As a trusted Aruba reseller, ServerMonkey offers the Aruba 7000 Series at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Performance and capacity

Features	7010	7030
Maximum campus or remote AP licenses	32	64
Maximum concurrent users/devices	2,048	4,096
Maximum VLANs	4,096	4,096
Active firewall sessions	64k	64k
Concurrent GRE tunnels	512	1,024
Concurrent IPsec sessions	2,048	4,096
Concurrent SSL sessions	2,048	4,096
Firewall throughput (Gbps)	8	8
Wired Bridged throughput (Gbps)	8	8
Encrypted throughput 3DES (Gbps)	2.4	2.4
Encrypted throughput AES-CBC-256 (Gbps)	2.6	2.6
Encrypted throughput AES-CCM (Gbps)	3.4	4.0
Encrypted throughput AES-GCM-256 (Gbps)	3.3	3.4

Interfaces and indicators

Features	7010	7030
Form factor/footprint	1xRU	1xRU
10/100/1000BASE-T	16	8 (combo)
1000BASE-X	2xSFP	8 (combo)
10G Ports (10G or 1G supported)	-
USB 2.0	2	1
Management/status LEDs	Yes	Yes
LINK/ACT and status LEDs	Yes	Yes
LCD panel and navigation buttons	Yes	Yes
Console port	mini USB, RJ-45	mini USB, RJ-45
Out-of-band management port	Yes	No

Power over ethernet (PoE) support

Features	7010	7030
PoE¹ Role/Mode	PSE	-
PoE In or Out	Out	-
Max concurrent of PoE Ports	12	-
Max² concurrent PoE+ Ports	12	-
PoE Power Budget	150W	-

¹ PoE: 802.3af, up to 15.4W from the PSE and up to 12.95W at the PD, not to exceed the total PoE Power Budget.
² PoE+: 802.3at, up to 30W per port from the PSE and up to 25.5W at the PD, not to exceed the total PoE Power Budget.

Physical

Features	7010	7030
Dimensions (H x W x D)	4.42 cm x 31.75 cm x 33.7 cm (1.74" x 12.75" x 13.3")	4.4 cm x 30.5 cm x 21.1 cm (1.7" x 12" x 8.3")
Weight	3.4 kg (7.5 lbs)	2.06 kg (4.54 lbs)
MTBF (hours, @ 40C)	232,843	390,679

Environmental range

Features	7010	7030
Operating temperature	0° C to 40° C	0° C to 40° C
Storage temperature	-40° C to 70° C	-40° C to 70° C
Humidity/Storage humidity	5% to 95%, NC	5% to 95%, NC
Operating altitude	10,000 feet	10,000 feet
Acoustic noise³	39.8 – 58.6 dBA	29.1 – 57.4 dBA
Maximum heat dissipation (BTU/hour)	300	168
Maximum power consumption	190W (with PoE)	55W
Power Source	Internal power supply	Internal power supply

³ Sound power per ETSI 300 753 in accordance with ISO 7779

Power adapter and supply specifications

Features	150-watt
Input voltage range	90 VAC to 264 VAC
Output voltage	54VDC, 2.78A
Input frequency	47-63 Hz
AC line input current (steady state)	2.0A
Operating Temperature	0° C to 40° C
Cooling	-
Weight	0.72 kg (1.58 lbs)

Regulatory and safety compliance

Description	Specification
Regulatory SKU information	ARCN0103 (7010) ARCN7030 (7030)
Minimum ArubaOS Release	8.x
	WI-FI CERTIFIED WPA3, AOS 8.4; WI-FI CERTIFIED Enhanced Open, AOS 8.4; Wi-Fi 6 (802.11ax), AOS 8.4; WI-FI CERTIFIED 802.11ad, AOS 8.4
Safety certifications	UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition EN 60950:2005 IEC 60950-1 Second Edition NOM (obtained by partners and distributors)
Electromagnetic emissions certifications	FCC Part 15 Class B CE AS/NZS CISPR22 Class B CISPR22 Class A (7010, 7030), Class B EN55022 Class A (7010, 7030), Class B ICES-003 Class A (7010, 7030), Class B VCCI Class A (7010, 7030), Class B EN61000-3-2 EN61000-3-3 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, AS/NZS 3548 KN22 Class B KCC CNS13438 Class B EN55024/CISPR24 KN24 Industry Canada Class B CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC
Telco	Common Language Equipment Identifier (CLEI) Code

Service and warranty information

Hardware: 1 year parts/labor, can be extended with support contract

Software: 90 days, can be extended with support contract
