ARUBA access points allow you to deploy and manage high-speed networks while also providing best-in-class security, reliable network performance, and flexible scalability. Browse Aruba solutions or contact a servermonkey expert and start your journey to a growing high-performance, secure network solution that can grow with you.

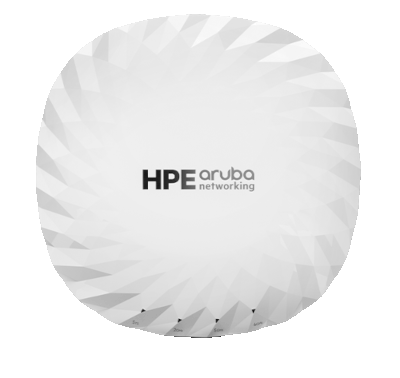

As a trusted Aruba reseller, ServerMonkey offers the Aruba Indoor 730 AP Series at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Category	Specifications
Wi-Fi Radio Specifications	AP type: Indoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11be 2x2 MIMO 2.4 GHz radio: Two spatial stream Single User (SU) MIMO for up to 688 Mbps wireless data rate with 2SS EHT40 802.11be client devices 5 GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.9 Gbps wireless data rate with 2SS EHT160 802.11be client devices 6 GHz radio: Two spatial stream Single User (SU) MIMO for up to 5.8 Gbps wireless data rate with 2SS EHT320 802.11be client devices MU-MIMO (downlink, uplink) is supported on all radios Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835 GHz ISM, 5.150 to 5.250 GHz U-NII-1, 5.250 to 5.350 GHz U-NII-2, 5.470 to 5.725 GHz U-NII-2E, 5.725 to 5.850 GHz U-NII-3/ISM, 5.850 to 5.895 GHz U-NII-4, 5.925 to 6.425 GHz U-NII-5, 6.425 to 6.525 GHz U-NII-62, 6.525 to 6.875 GHz U-NII-7, 6.875 to 7.125 GHz U-NII-8
Power Sources and Power Consumption	The AP supports direct DC power and Power over Ethernet (PoE) on port E0 and/or E1 When both DC and PoE power sources are available, DC power takes priority over PoE When PoE power is supplied to both Ethernet ports, either port can be configured as the active power source Inactive/standby PoE power sources can be used to deliver hitless failover Power sources are sold separately; see the HPE Aruba Networking 730 Series Ordering Guide for details When powered by DC or 802.3bt (class 5) PoE, the AP will operate without restrictions When powered by 802.3at (class 4) PoE with the IPM feature disabled, the AP will disable the USB ports Operating the AP with an 802.3af (class 3 or lower) POE source is not supported (except for AP staging) Maximum (worst case) power consumption (without/with USB devices attached): DC powered: 20W/31W, PoE powered: 24W/36W
Mechanical Specifications	Dimensions/weight (HPE Aruba Networking AP-735; unit without mount bracket): 240mm (W) x 240mm (D) x 56mm (H); 1440g Dimensions/weight (AP-735; shipping): 271mm (W) x 258mm (D) x 89mm (H); 1830g
Environmental Specifications	Operating conditions: Temperature: 0C to +50C/+32F to +122F; Relative humidity: 5% to 95%; ETS 300 019 class 3.2 environments; AP is plenum rated for use in air-handling spaces Storage conditions: Temperature: -25C to +55C/-13F to +131F; Relative humidity: 10% to 100%; ETS 300 019 class 1.2 environments Transportation conditions: Temperature: -40C to +70C/-40F to +158F; Relative humidity: up to 95%; ETS 300 019 class 2.3 environments
