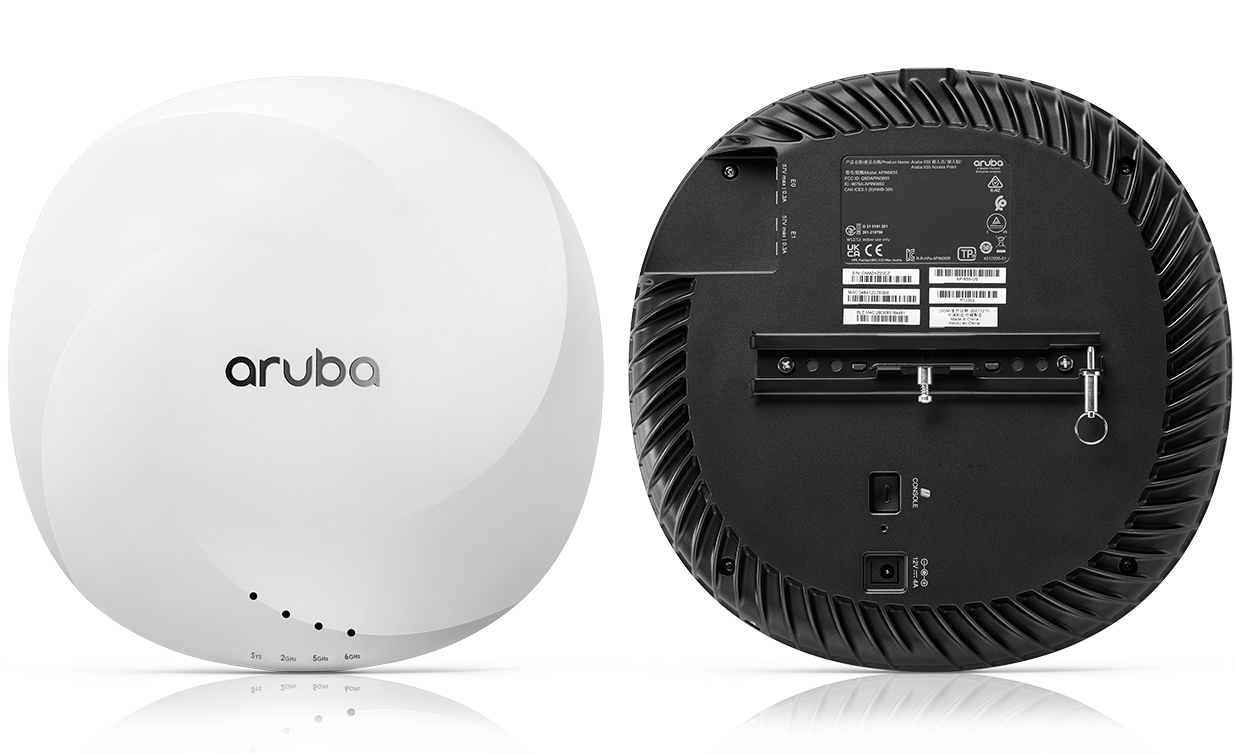

Aruba Indoor 650 AP Series

• The AP supports direct DC power and Power over Ethernet (POE) on port E0 and/or E1
• When POE power is supplied to both Ethernet ports, the AP combines power from both sources (SmartPOE feature), using E0 as the primary source and E1 as secondary
• When both DC and POE power sources are available, DC power takes priority over POE
• Power sources are sold separately; see the 650 Series Ordering Guide for details
• The AP supports various power modes depending on the available power source(s) and configuration
  • With IPM disabled, the AP may apply some static restrictions, see tables below
  • With IPM enabled, the AP will start up in unrestricted mode but may dynamically apply restrictions depending on the available power budget and actual consumption. The feature restrictions and order in which these get applied are configurable
  • When powered by direct DC power, the AP operates without restrictions
  • Powering the AP from a single 802.3af (class 3 or lower) POE source is not supported (except for AP staging), regardless of IPM status
• Maximum (worst-case) power consumption (without / with a USB device attached):
  • DC powered: 36.0W / 42.5W
  • POE powered: 40.3W / 46.5W
  • This assumes that up to 5W is supplied to the attached USB device
• Maximum (worst-case) power consumption in idle mode: 14.3W/20.2W (DC) or 16.9W/22.7W (POE)
• Maximum (worst-case) power consumption in deep-sleep mode: 2.4W (DC) or 4.0W (POE)

• A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 650 Series Ordering Guide for details.

• Dimensions/weight (AP-655; unit without mount bracket):
  • 260mm (W) x 260mm (D) x 60mm (H)
  • 1,800g
• Dimensions/weight (AP-655; shipping):
  • 285mm (W) x 285mm (D) x 95mm (H)
  • 2,300g

• Operating conditions
  • Temperature: 0°C to +50°C / +32°F to +122°F
  • Relative humidity: 5% to 95%
  • ETS 300 019 class 3.2 environments
  • AP is plenum rated for use in air-handling spaces
• Storage conditions
  • Temperature: -25°C to +55°C / -13°F to +131°F
  • Relative humidity: 10% to 100%
  • ETS 300 019 class 1.2 environments
• Transportation conditions
  • Temperature: -40°C to +70°C / -40°F to +158°F
  • Relative humidity: up to 95%
  • ETS 300 019 class 2.3 environments

• Mean Time Between Failure (MTBF): 544khrs (62yrs) at +25°C operating temperature

• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• IEC/EN 62368-1
• EN 60601-1-1, EN60601-1-2
• For more country-specific regulatory information and approvals, please see your HPE Aruba Networking representative.
• Regulatory considerations for AP-654:
  • The AP-654 will be offered in countries where there is an existing or clear and defined path to allow operation of 6 GHz radios with external connectorized antennas, either as a Low Power Indoor (LPI) or Standard Power (SPI) product. Please contact your HPE Aruba Networking representative to confirm (existing or planned) availability for the country where the AP will be deployed.

• AP-654 (all models): APIN0654
• AP-655 (all models): APIN0655

• UL2043 plenum rating
• Wi-Fi Alliance (WFA):
  • Wi-Fi CERTIFIED a, b, g, n, ac
  • Wi-Fi CERTIFIED 6E (ax, 6GHz)
  • WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
  • WMM, WMM-PS, W-Fi Agile Multiband
  • Wi-Fi Location^*
  • Passpoint (release 2)
• Bluetooth SIG
• Ethernet Alliance (POE, PD device, class 6)

^*Targeting Q2 CY22 to obtain the Wi-Fi Location certification

• HPE Aruba Networking’s hardware limited lifetime warranty

• AP-654 (excluding 6GHz support):
  • ArubaOS and Aruba InstantOS 8.11.2.0, ArubaOS 10.6.0.0
• AP-654 (including 6GHz support):
  • ArubaOS and Aruba InstantOS 8.12.0.0, ArubaOS 10.7.0.0
• AP-655:
  • ArubaOS and Aruba InstantOS 8.10.0.1, ArubaOS 10.4.0.0
