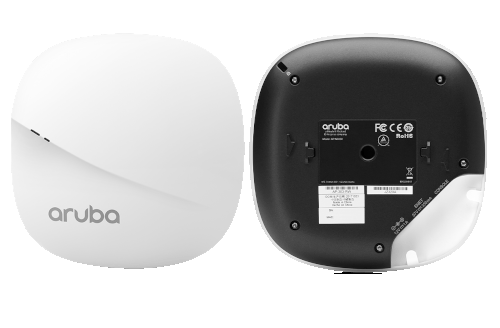

303 Series :: Indoor access points :: Access Points :: Enterprise Wireless LAN :: Aruba :: Networking

ARUBA access points allow you to deploy and manage high-speed networks while also providing best-in-class security, reliable network performance, and flexible scalability. Browse Aruba solutions or contact a servermonkey expert and start your journey to a growing high-performance, secure network solution that can grow with you.

As a trusted Aruba reseller, ServerMonkey offers the Aruba Indoor 303 AP Series at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Unique Benefits
Unified AP – deploy with or without controller Dual Radio 2x2 802.11ac access point with Multi-User MIMO (wave 2) Built-in Bluetooth Low-Energy (BLE) radio Advanced Cellular Coexistence (ACC) Quality of service for unified communications applications HPE Aruba Networking AppRF technology RF Management Spectrum analysis Security
Choose Your Operating Mode
The HPE Aruba Networking 303 Series Access Points offer a choice of deployment and operating modes to meet your unique management and deployment requirements: Controller-based mode Controller-less (Instant) mode Remote AP (RAP) mode for branch deployments Air monitor (AM) for wireless IDS, rogue detection and containment Spectrum analyzer (SA), dedicated or hybrid, for identifying sources of RF interference Secure enterprise mesh portal or point
Specifications
Hardware Variants AP-303 models: single Ethernet AP-303P models: second Ethernet with PoE out
Wi-Fi Radio Specifications
AP type: Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO and 2.4GHz 802.11n 2x2 MIMO 5GHz (radio 0): Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate 2.4GHz (radio 1): Two spatial stream Single User (SU) MIMO for up to 300Mbps wireless data rate Support for up to 256 associated client devices per radio Supported frequency bands (country-specific restrictions apply) Available channels: Dependent on configured regulatory domain Supported radio technologies: 802.11b, 802.11a/g/n/ac Supported modulation types: 802.11b, 802.11a/g/n/ac Transmit power: Configurable in increments of 0.5dBm Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks Maximum ratio combining (MRC) for improved receiver performance Transmit beam-forming (TxBF) for increased signal reliability and range
Wi-Fi Antennas
AP-303: Internal antenna models Two vertically polarized dual-band downtilt omni-directional antennas for 2x2 MIMO The antennas are optimized for horizontal ceiling mounted orientation of the AP.
Other Interfaces
E0: One 10/100/1000BASE-T Ethernet network interface (RJ-45) E1 (AP-303P models only): One 10/100/1000BASE-T DC power interface, accepts 2.1/5.5-mm center-positive circular plug Bluetooth Low Energy (BLE) radio Visual indicators (tri-color LEDs): for System and Radio status Reset button: factory reset (during device power-up) Serial console interface (proprietary, µUSB physical jack) Kensington security slot
Power Sources and Consumption
The AP supports direct DC power and Power over Ethernet (PoE) When both power sources are available, DC power takes priority over PoE AP-303 models: Direct DC source: 12Vdc nominal, +/- 5% AP-303P models: Direct DC source: 48Vdc nominal, +/- 5% Maximum (worst-case) power consumption: 10.1W (PoE) or 8.8W (DC) Maximum (worst-case) power consumption in idle mode: 4.2W (PoE) or 4.0W (DC)
Mounting
The AP ships with a (black) mount clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling. Several optional mount kits are available to attach the AP to a variety of surfaces.
Mechanical
Dimensions and weight (unit, excluding mount accessories): 150mm (W) x 150mm (D) x 35mm (H) or 5.9" (W) x 5.9" (D) x 1.4" (H) 260g or 9.2oz
Environmental
Operating: Temperature: 0° C to +40° C (+32° F to +104° F), Humidity: 5% to 93% non-condensing Storage and transportation: Temperature: -40° C to +70° C (-40° F to +158° F)
Regulatory
FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2
Regulatory Model Numbers
AP-303: APIN0303
Reliability
MTBF: 795khrs (91yrs) at +25C operating temperature
Certifications
CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac Passpoint® (Release 2) with ArubaOS and Instant 8.3+
Warranty
HPE Aruba Networking limited lifetime warranty
Minimum Software Version
AP-303 models: ArubaOS & Aruba InstantOS 8.3.0.0 AP-303P models: ArubaOS & Aruba InstantOS 8.4.0.0 ArubaOS 10.0.0.0
