Key Features
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated

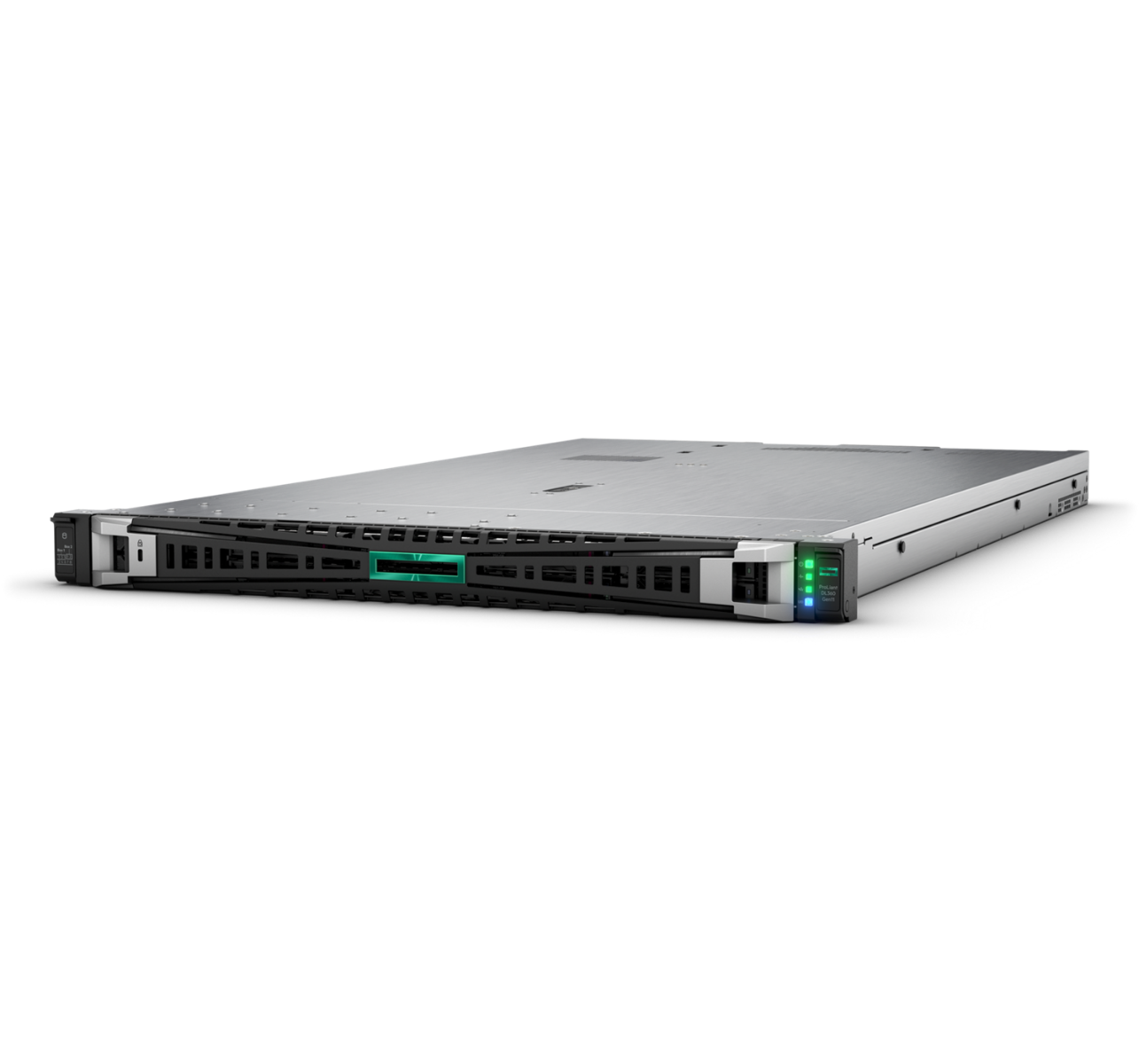

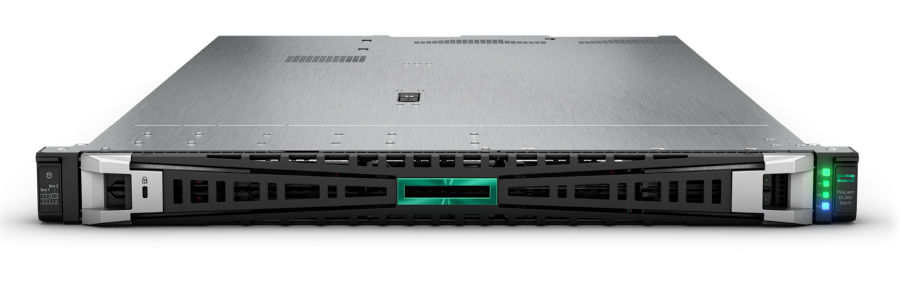

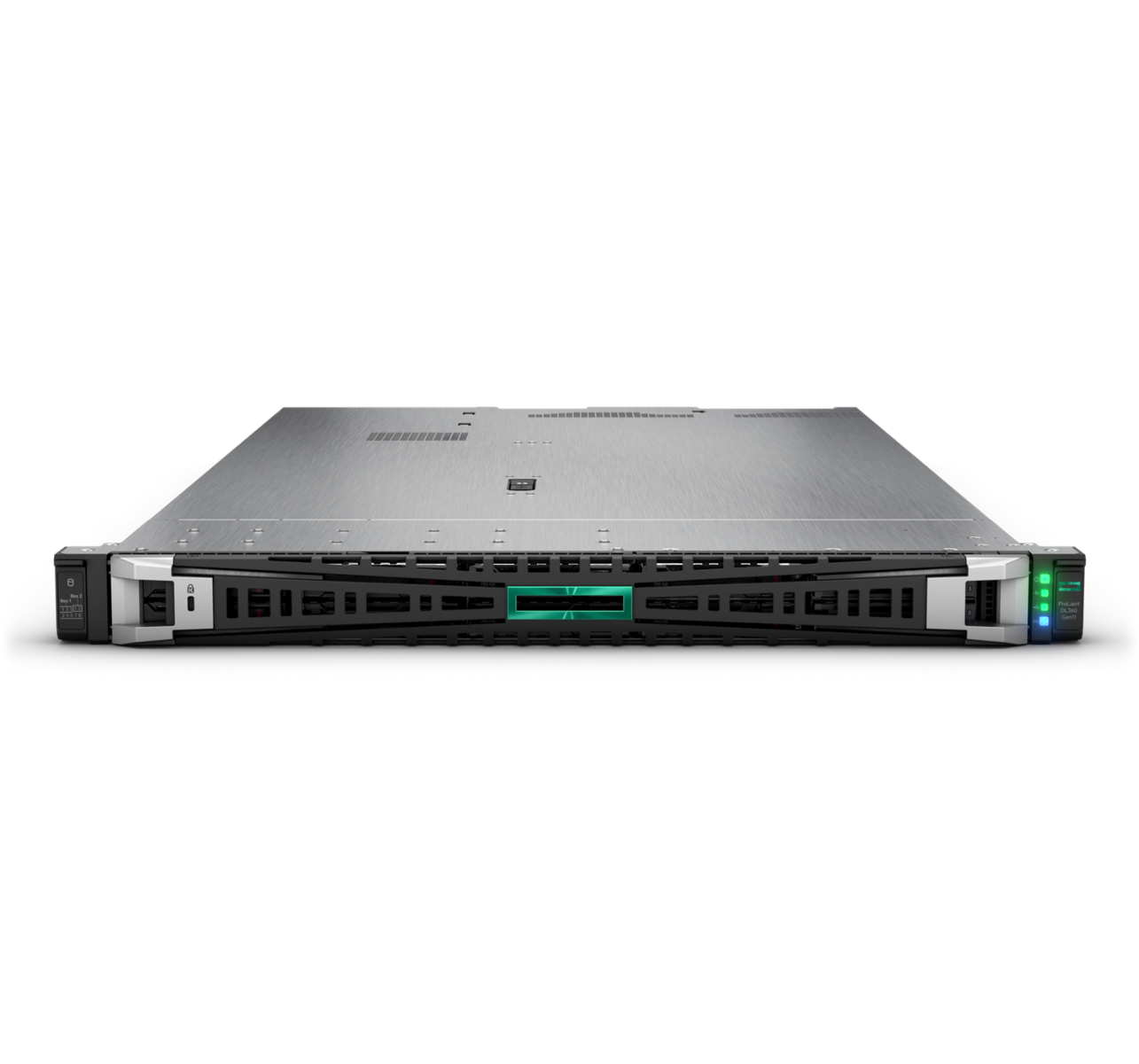

HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th Generation Intel® Xeon® processors and simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.
Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.
Trusted Security by Design: Uncompromising, Fundamental, and Protected
The HPE ProLiant DL360 Gen11 server is tied into the Silicon Root of Trust and the Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the system to manage secure boot, memory encryption, and secure virtualization.
HPE ProLiant Gen11 servers use the Silicon Root of Trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel® Xeon® processor that must be matched exactly before the server will boot. This ensures malicious code is contained and healthy servers are protected.
HPE ProLiant Gen11 servers continuously protect healthy servers by a) providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and b) securing servers at the edge with IDevID certificates installed by default.
HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.
Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.
Optimized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, and general-purpose virtualization workloads (including large-scale VDI), and Platforms (VCF & Containers) that require increased compute density with built-in security and flexibility.
Harness major computer performance. The HPE ProLiant DL360 Gen11 server is powered by the 4th Generation Intel® Xeon® Scalable Processors with next-generation technology that supports up to 60 cores, 350W, and up to 8 TB of memory.
The HPE ProLiant DL360 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.
The server provides 16 DIMMs per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
The HPE ProLiant DL360 Gen11 server provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Processor Type: Intel®
Processor Family: 4th Generation Intel® Xeon® Scalable Processors
Processor core available: 8 to 60 core, depending on processor
Processor cache: 12 - 60 MB L3, depending on processor
Maximum memory: 4.0 TB per socket, when populated with 256 GB DDR5
Memory Slots: 16 DIMM slots per socket
Memory type: HPE DDR5 SmartMemory
Memory protection features: HPE Fast Fault Tolerant Memory, Advanced ECC Memory, Online Spare Memory, Mirrored Memory
Drive supported: Up to 4 LFF SAS/SATA HDDs or SSDs. Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.3 SDDs, depending on model. Up to 2x RAID 1 NVMe M.2 Boot device (Internal modular or external accessible from rear wall).
Infrastructure management: Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced.
System fan features: Standard Fan Kit (Q'ty 5), Performance Fan Kit (Q'ty 7), Close Loop Liquid Cooling Heatsink & Fan kit, Direct Liquid Cooling & Fan Kit, depending on model.

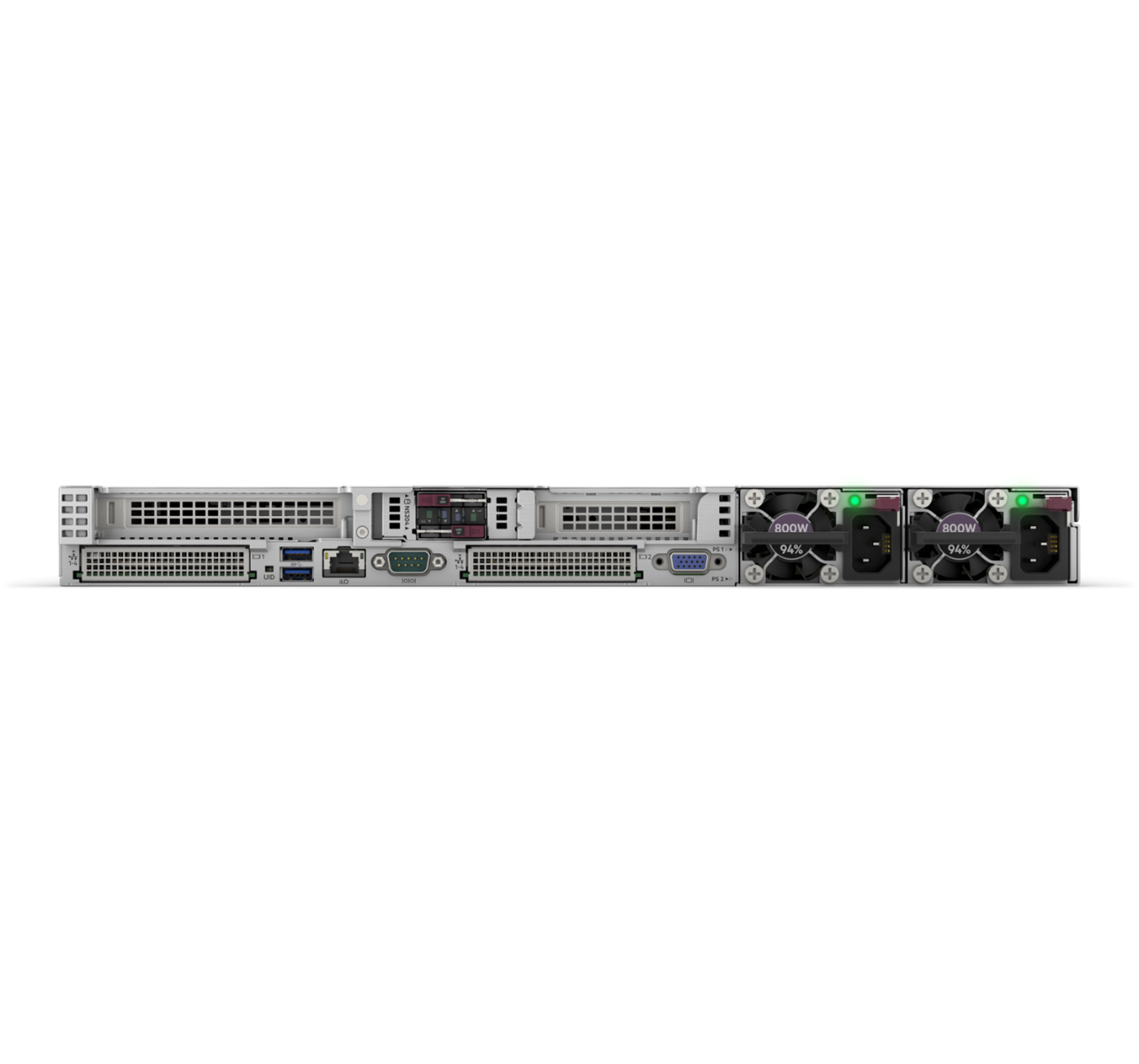

Power supply type: HPE 800W Flex Slot Platinum Hot Plug Power Supply, HPE 1000W Flex Slot Titanium Power Supply, HPE 1600W Flex slot Platinum Hot Plug Power Supply, HPE 1600W DC Power supply, HPE 1600W Flex Slot -48VDC Hot Plug Power Supply, HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply, depending on model.
Expansion Slots: Maximum 3 PCIe Gen5 slots and maximum 2 OCP 3.0 PCIe5 slots, for detail descriptions please see QuickSpecs.
Network Controller: Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0). Please see QuickSpecs for network card choices.
Storage controller: Included - Embedded SATA controller (AHCI or Intel SATA software RAID controller) Optional - HPE Smart Array Gen11 Storage Controller in Variety of protocols -including NVMe-, port count, array utilities, and form factors (PCIe stand-up adapter and OCP3.0). Please see QuickSpecs for storage controllers selection.
Warranty: 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support
Processor number: 1 or 2
Processor speed: 3.7 GHz, maximum depending on processor.
Optical drive type: Optional - HPE 9.5mm SATA DVD-RW Optical Drive, HPE Mobile USB DVD-RW Drive..
Security: UEFI Secure Boot and Secure Start support. Intel® Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits.
DIMM capacity: 16 GB to 256 GB.
